Insutile® Build Board

Lightweight Construction Boards

High-performance XPS tile backer board engineered for wet and dry environments. Rigid, waterproof, and ready to tile — outperforms traditional cement boards in almost every metric.

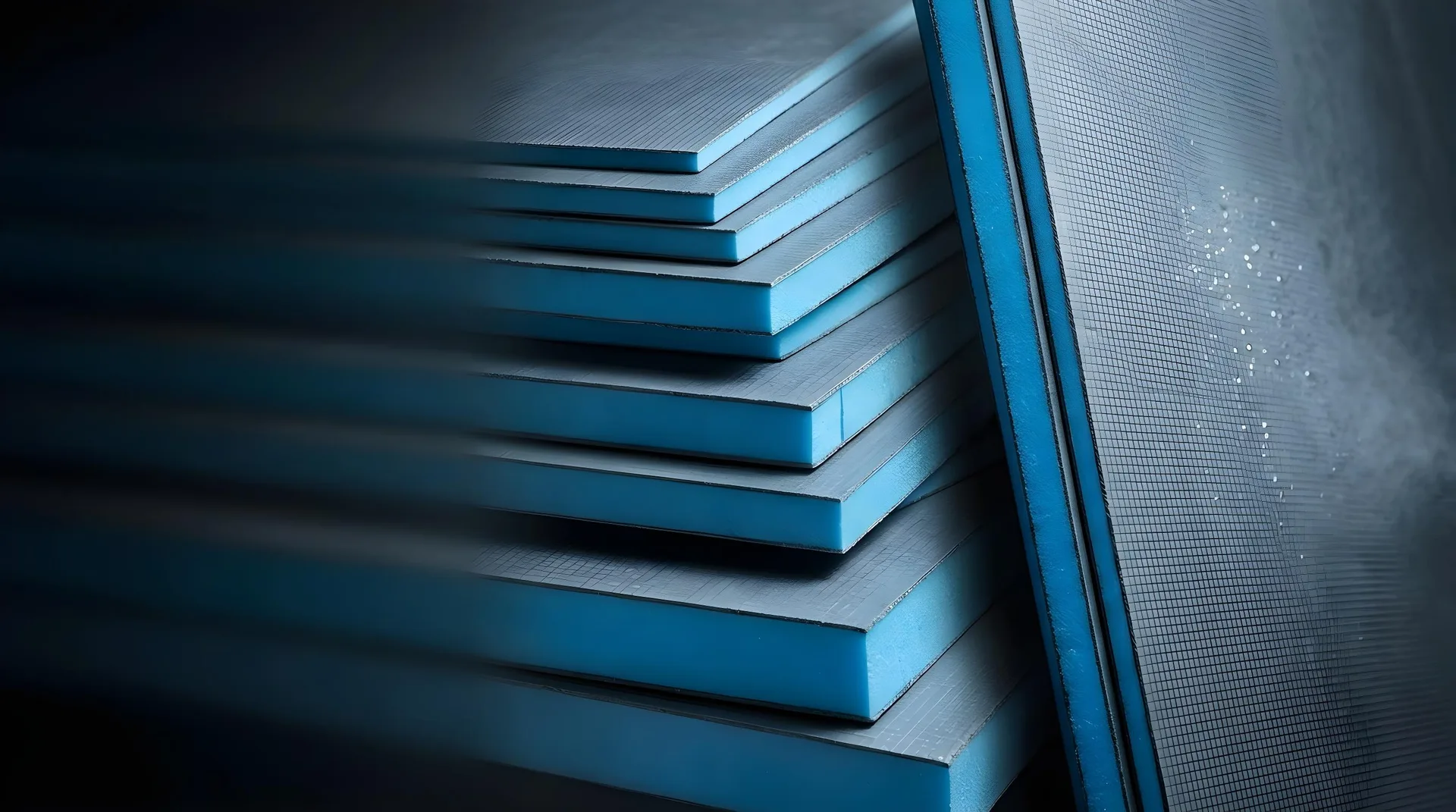

Insutile® Build Board — board fan
Home/Technology/Build Board

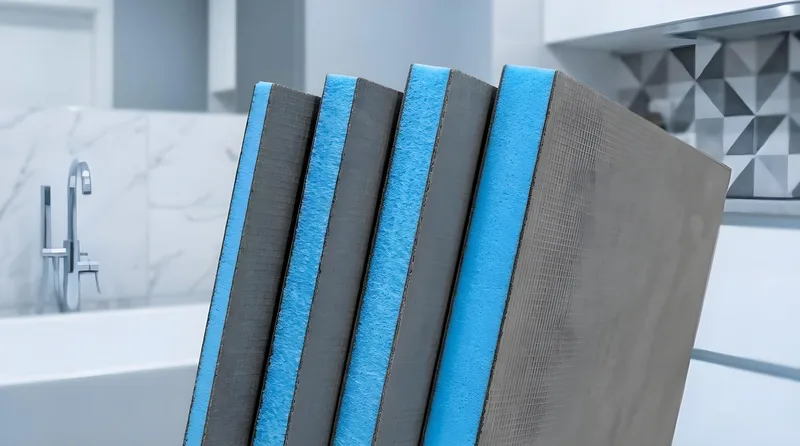

What is Insutile® Build Board?

High-Performance Tile Backer Board

Insutile® Build Board is a high-performance extruded polystyrene (XPS) tile backer board engineered for use in both wet and dry environments. Its rigid XPS core is coated on both sides with a proprietary cementitious mortar, creating a product that outperforms traditional cement boards in almost every metric.

The reinforced cementitious surface bonds reliably with all standard tile adhesives, making Insutile® Build Board the ideal substrate for ceramic, porcelain, and natural stone tile installations — in residential kitchens, commercial hotel bathrooms, spa facilities, and everything in between.

Insutile® Build Board

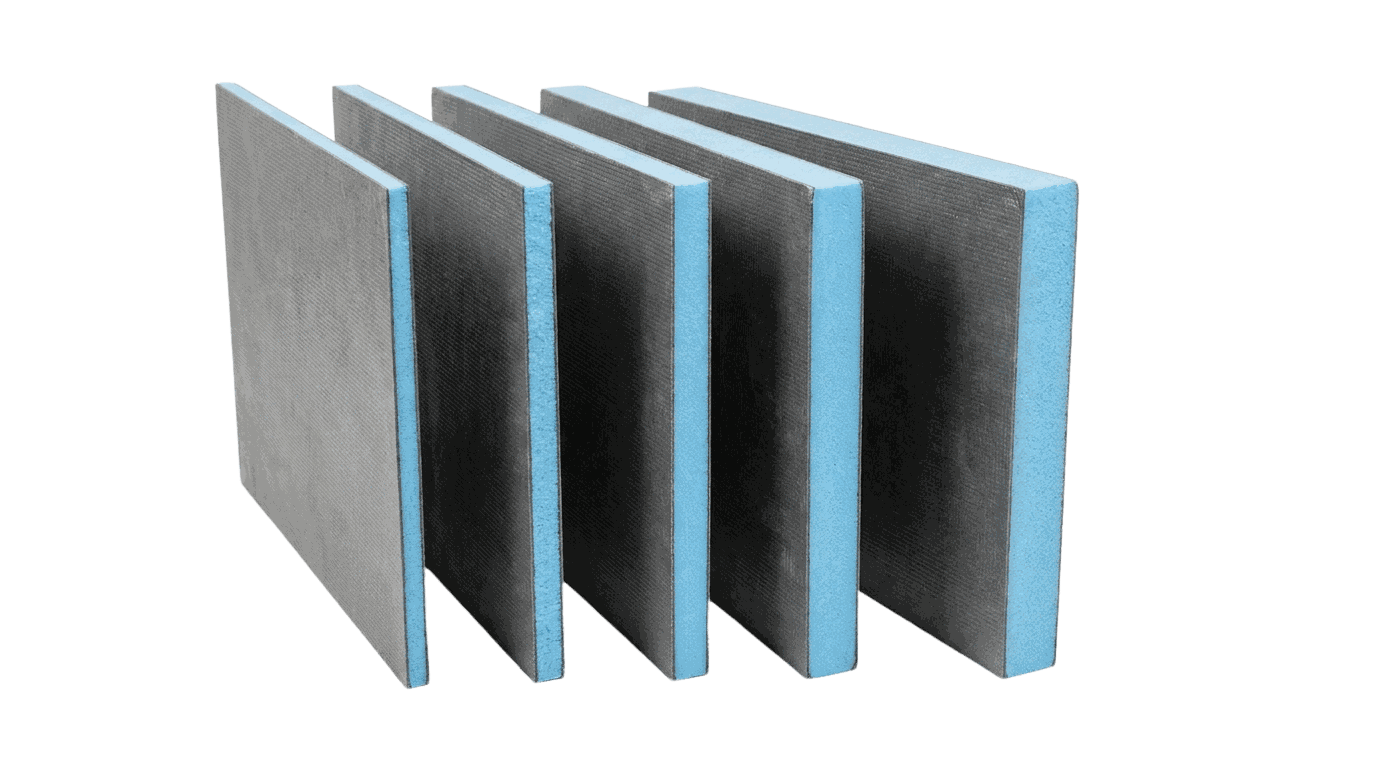

Thickness Range

4–80 mm

Ten thicknesses, customisable if needed. One board type covers thin wall linings, underfloor-heating overlays, and insulated partition walls.

  • 4
  • 6
  • 10
  • 12.5
  • 20
  • 30
  • 40
  • 50
  • 60
  • 80

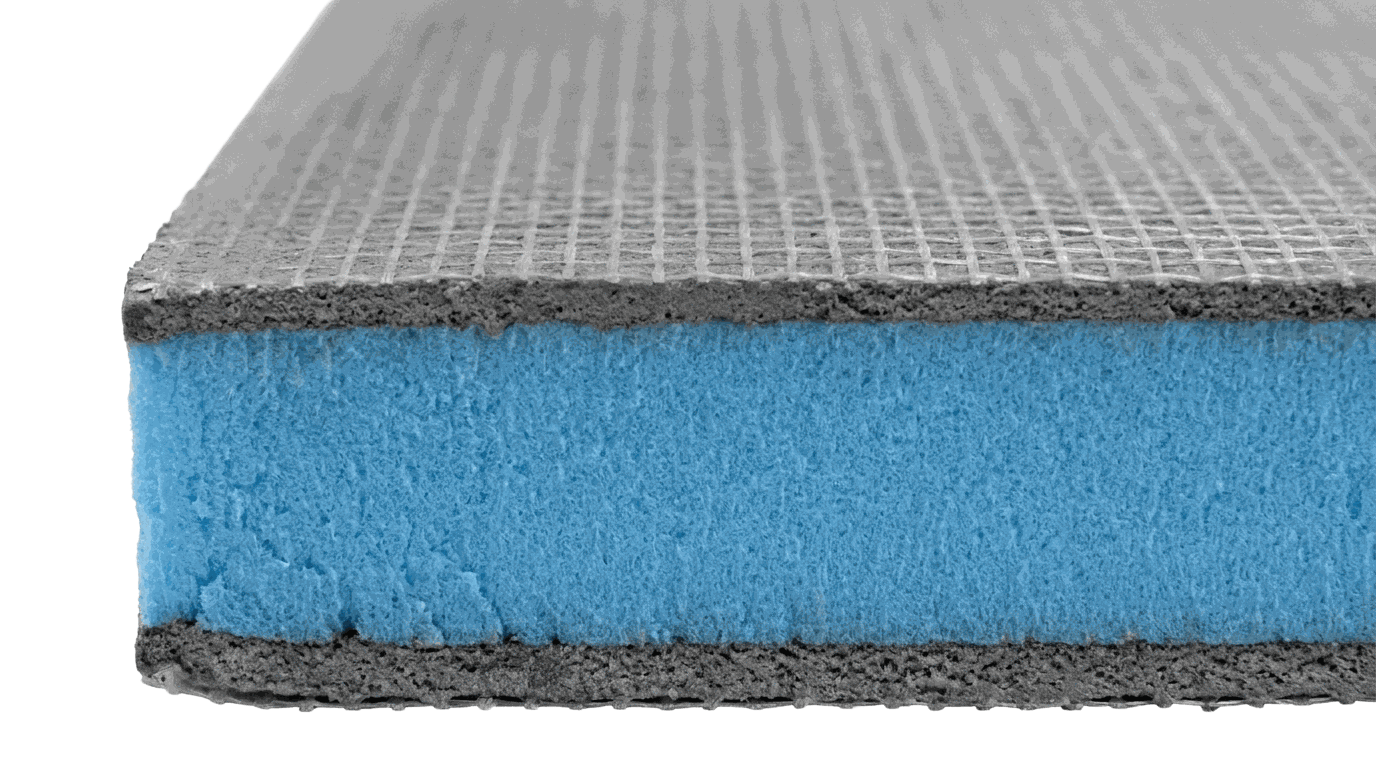

Board Materials

3 materials

An XPS foam core with a fiberglass mesh and a cement layer on both faces.

  • Cement layerCementitious mortar coating. Tile adhesive bonds directly to it.
  • Fiberglass meshAlkali-resistant reinforcement under the coating.
  • XPS foam coreClosed-cell extruded polystyrene. Waterproof and insulating.
Insutile® Build Board video

Product Video

Build Board explained

This animation covers the three-layer construction, the waterproof core, the weight of the board against cement board, thermal insulation in a wall, direct tiling, cutting on site, renovation over existing tiles, and the ten standard thicknesses from 4 to 80 mm.

All Product Videos

Sizes and Specs

Available dimensions and key performance specs

The dimensions and performance values below are our manufacturing standards for Insutile® Build Board. Specifications and sizing can be customized to suit your project — contact our team for special orders.

Download Data Sheet

Size Chart · Build Board

ThicknessWidthLength
46001200
66001200
106001200 / 2400
12.56001200 / 2400
206001200 / 2400
306001200 / 2400
406001200 / 2400
506001200 / 2400
606001200 / 2400
806001200 / 2400

All values in mm · 600 × 1200 boards are Insutile® Small · 600 × 2400 boards are Insutile® Large

Specification Sheet · Build Board

PropertyValueStandard
Core materialExtruded polystyrene (XPS)closed-cell, high-density
Surface finishCementitious, fiberglass meshboth faces
Water absorption≤ 0.1 %EN 12087
Capillary water uptake0 (none)EN 1015-18
Water permeability0 (impermeable)ASTM E96
Compressive strength≥ 300 kPaEN 826
Thermal conductivityλ ≤ 0.034 W/mKASTM C518
Service temperature−50 °C to +75 °CEN 13164
Reaction to fireClass EEN 13501-1

Surface Finish

Available in two surface finishes

Regular coat finish
Regular Coat

Smooth standard coating — easier to cut and shape, ideal for DIY and fast site work.

Dual coat patterned finish
Dual Coat · Patterned

Extra strength and durability with a patterned, visually distinctive finish — may require power tools to cut and shape.

Where Insutile® Build Board Performs

Ideal for a wide range of applications

Ideal for a wide range of applications in residential, commercial, and specialty settings.

Thickness Guide View Solutions
Bathrooms and showers Laundry rooms Kitchens Spa and wellness centres Floors and walls Countertops

Bathrooms & Showers

Superior moisture resistance makes Insutile® Build Board perfect for bathroom walls, shower surrounds, and steam rooms.

Laundry Rooms

Withstands humidity and moisture from washing machines and dryers over the long term.

Kitchens

Reliable substrate for kitchen backsplashes and walls in both residential and commercial settings.

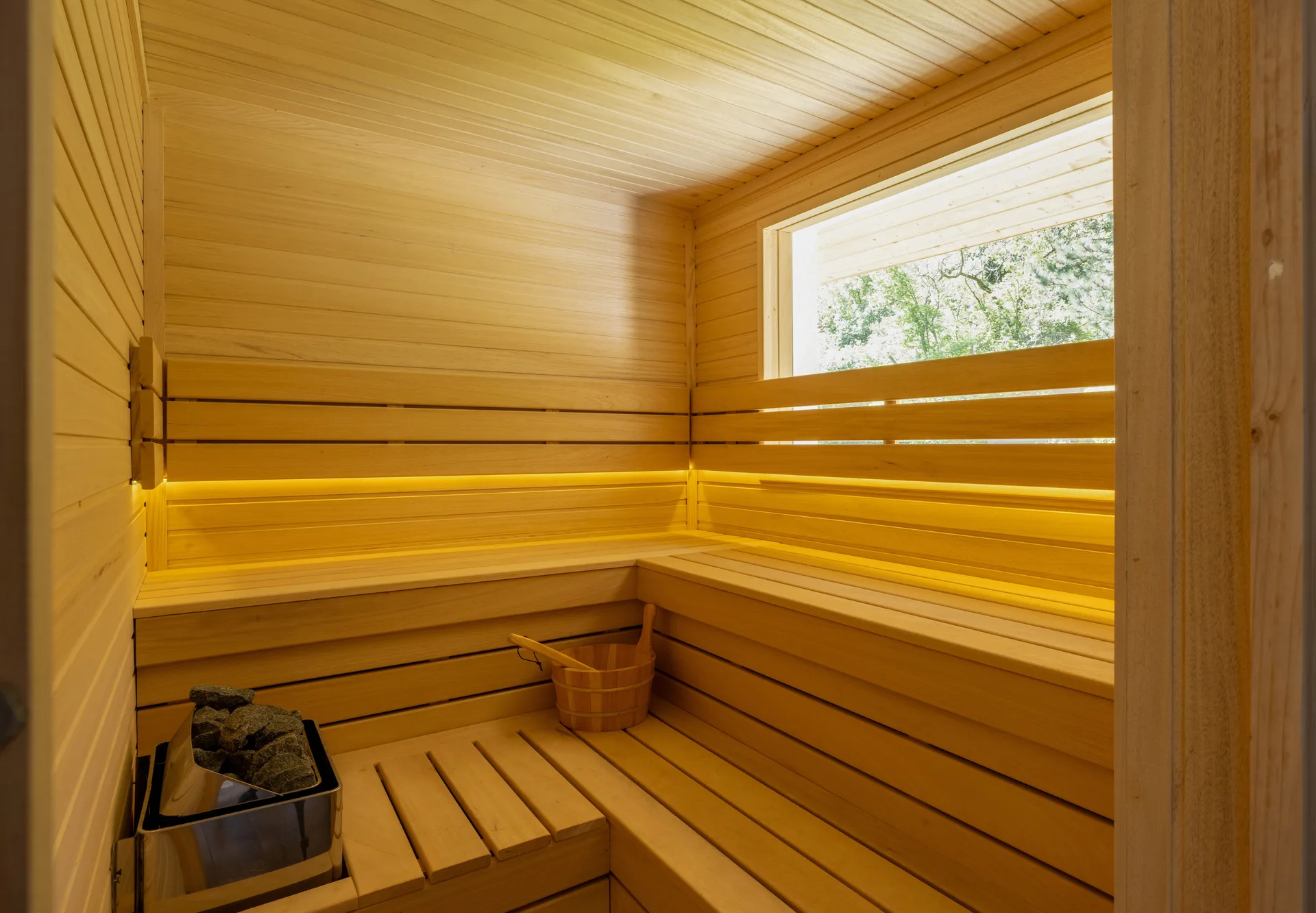

Spa & Wellness Centres

Engineered for demanding spa environments with high moisture, temperature, and humidity fluctuations.

Floors & Walls

Versatile for use on both vertical walls and horizontal floor substrates across all environments.

Countertops

Lightweight and durable substrate for kitchen and bathroom countertop tile installations.

Also suitable for Underfloor heating systems Tiled furniture & features Renovation & retrofit Commercial & residential projects

Key Features & Benefits

Superior performance across all critical categories

Insutile® Build Board delivers superior performance across all critical categories:

Waterproofing

Closed-cell XPS absorbs ≤ 0.1 % water — no swelling, no delamination, no mould behind tile.

High Mechanical Strength

300 kPa compressive strength handles heavy tile and stone — no flex, no cracked grout.

Excellent Tile Adhesion

Cementitious face grips thin-set directly — no primer needed, strong bond with every adhesive.

Thermal Insulation

0.034 W/mK core cuts heat loss through walls and floors — warmer rooms, lower bills.

Dimensional Stability

Doesn't warp, expand, or shrink — tiles stay flat and crack-free year-round.

Lightweight

7× lighter than cement board — one-person handling, less load, faster install.

Easy to Install & Cut

Score and snap with a utility knife — no power tools, no dust, minimal waste.

Underfloor Heating Compatible

Insulating core sends heat upward — faster warm-up, lower running cost on UFH.

Perfect for Renovation

Installs over old tile or uneven plaster — minimal build-up, no heavy strip-out.

Installation Steps

Seven essential steps for a successful install

Download Guide
01Substrate preparation 02Board cutting & fitting 03Fixing method 04Joint treatment 05Waterproofing 06Tiling 07Finishing
Installation Tip · No Skim-Coat, No Primer

Insutile® Build Board installs straight onto studs, masonry, or existing walls. The adhesive and the fixing method are chosen to suit the substrate or structure. No skim-coat or primer is needed before tiling.

Washers Included

Fixing washers are supplied with Insutile® Build Board — additional accessories can be ordered if needed.

View Accessories

Steps shown are a general guide — site conditions and substrates vary; always confirm the method with a qualified contractor or specifier.

How We Compare

Insutile® Build Board vs alternative substrates

How Insutile® Build Board compares with standard cement board, plain XPS foam, and gypsum board across common substrate requirements.

PropertyInsutile® Build BoardStandard Cement BoardPlain XPS FoamGypsum Board
Waterproof Core✓✗✓✗
Ready To Tile (no priming)✓✗✗✗
Thermal Insulator✓✗✓✗
Lightweight✓✗✓✗
Won't Absorb Water✓✗✓✗
Durable✓✓✗✓
Easy to Cut On Site✓✗✓✓
Versatility✓✗✗✗
XPS Compatible✓✗✓✓
Score9 / 91 / 96 / 93 / 9

Beyond the board: the complete wall system compared with a traditional brick wall — programme, labour, cost packages and a client decision matrix for a 100 m² module.

Download the comparison model

FAQ

Frequently asked questions

What sizes and thicknesses does Build Board come in?

Two standard formats, 600 × 1200 mm and 600 × 2400 mm, in ten thicknesses from 4 mm to 80 mm. The 4 mm and 6 mm boards are made in the 1200 mm length. Other sizes and thicknesses are made to order.

Is Build Board waterproof?

The closed-cell XPS core absorbs 0.1 % water or less by volume, so the board does not swell, delaminate or support mould. In showers, a waterproofing membrane is applied over the boards and joints in most cases.

Can I tile directly onto Build Board?

Yes. Tile adhesive goes directly onto the cementitious face and the tiles are bedded into it. No primer or skim coat is needed.

How is Build Board fixed?

The adhesive and the fixing method are chosen to suit the substrate or structure, whether that is a stud frame, masonry or an existing wall. The installation guide sets out the steps.

How is Build Board cut?

Score it with a utility knife and snap it. No power tools are needed and there is no dust.

What is its reaction-to-fire class?

Class E to EN 13501-1.
