Insutile® Angle Board

Preformed Tile-Ready Angles

Purpose-built XPS foam boards for creating clean room corners, wall angles, and boxing in water pipes, waste pipes, and heating risers — fully waterproof, tile-ready, no timber framing needed.

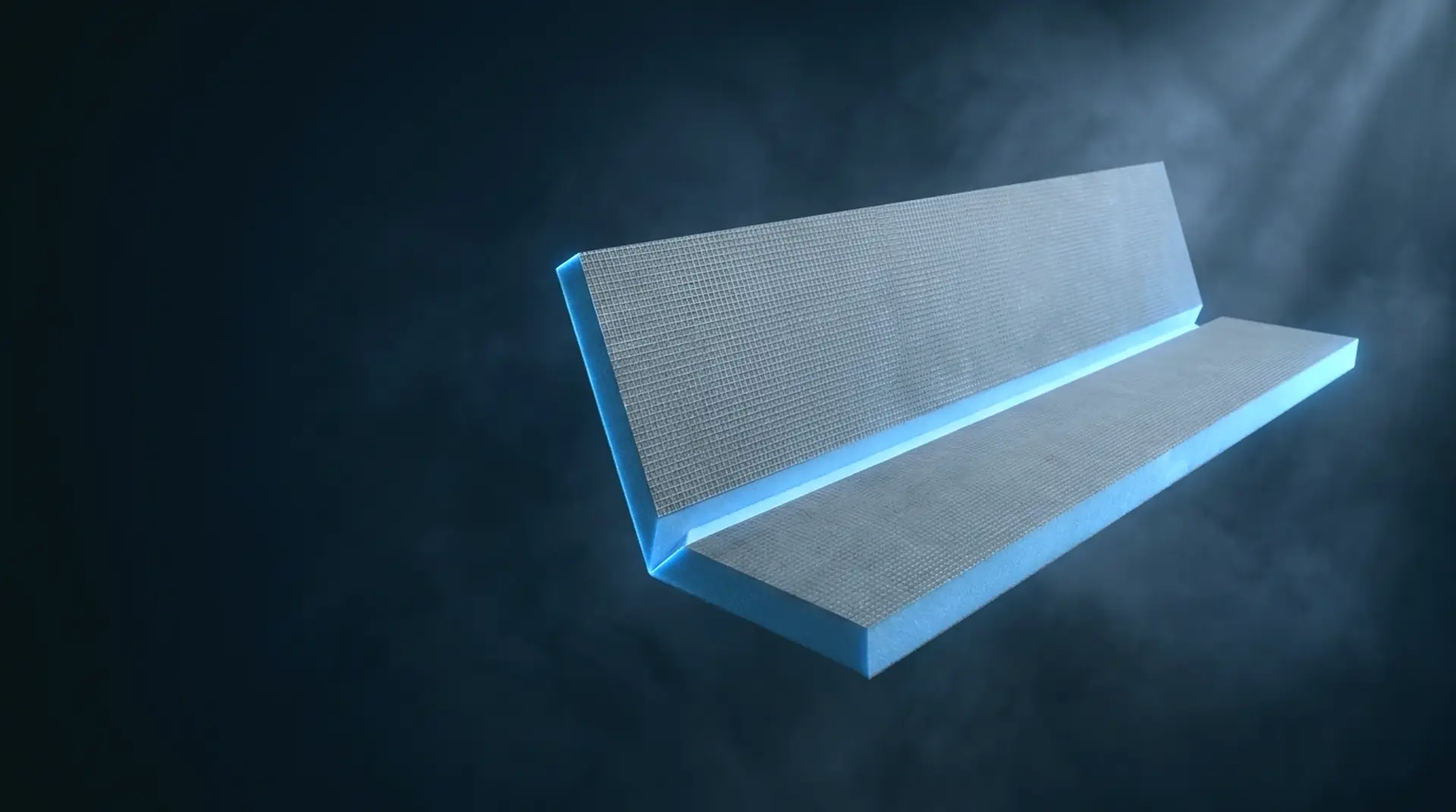

Insutile® Angle Board preformed angles
Home/Technology/Angle Board

What is Insutile® Angle Board?

Corners, Angles & Pipe Boxing — One Board Does It All

Insutile® Angle Boards are specialized tile backer boards engineered for two key applications: forming clean internal and external room corners and wall angles, and concealing exposed plumbing, heating pipes, waste stacks, and service risers. With Insutile® Angle Boards, there is no need for timber battens or plasterboard.

Insutile® Angle Board is a preformed, factory-scored panel that folds cleanly to the exact angle your project needs. Standard boards fold up to 90° straight out of the pack — perfect for wall junctions, pipe boxing, and wet-room corners — and custom angles can be produced to order for any non-standard geometry. That makes Angle Board ideal for renovations, where minimising on-site cutting, dust, and time on the wall matters most.

Insutile® Angle Board
Cuts & Folds Cleanly

Cuts cleanly with a utility knife and folds to the shape you need — making installation easier, quicker, and more efficient.

One-Step Pipe Boxing

Ideal for boxing in plumbing, waste stacks, and service risers — a neat, tile-ready enclosure in a single step.

Insutile® Angle Board video

Product Video

Angle Board explained

This animation shows the V-score, the fold to 90° with other angles made to order, the optional double-sided tape, the four standard wing sizes, fixing through both wings, and five typical applications.

All Product Videos

Folding

Preformed Folding

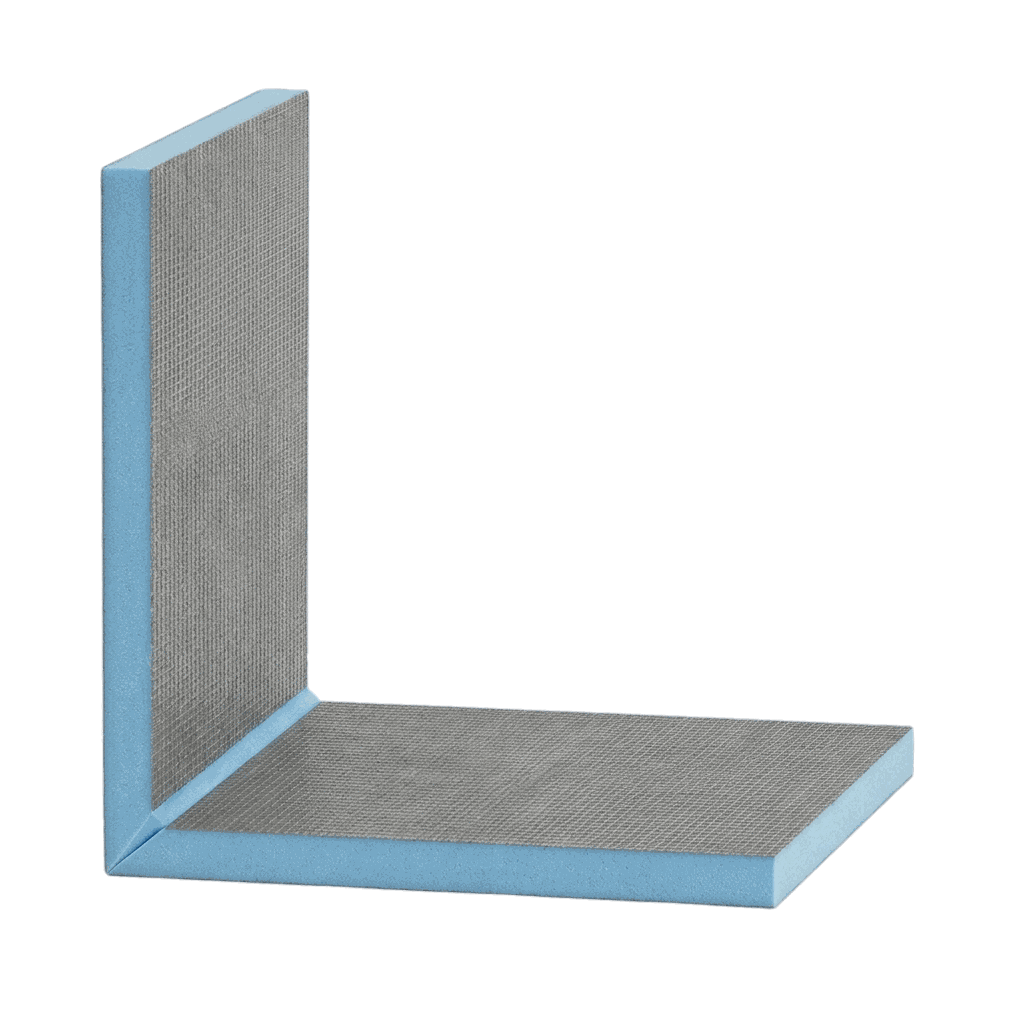

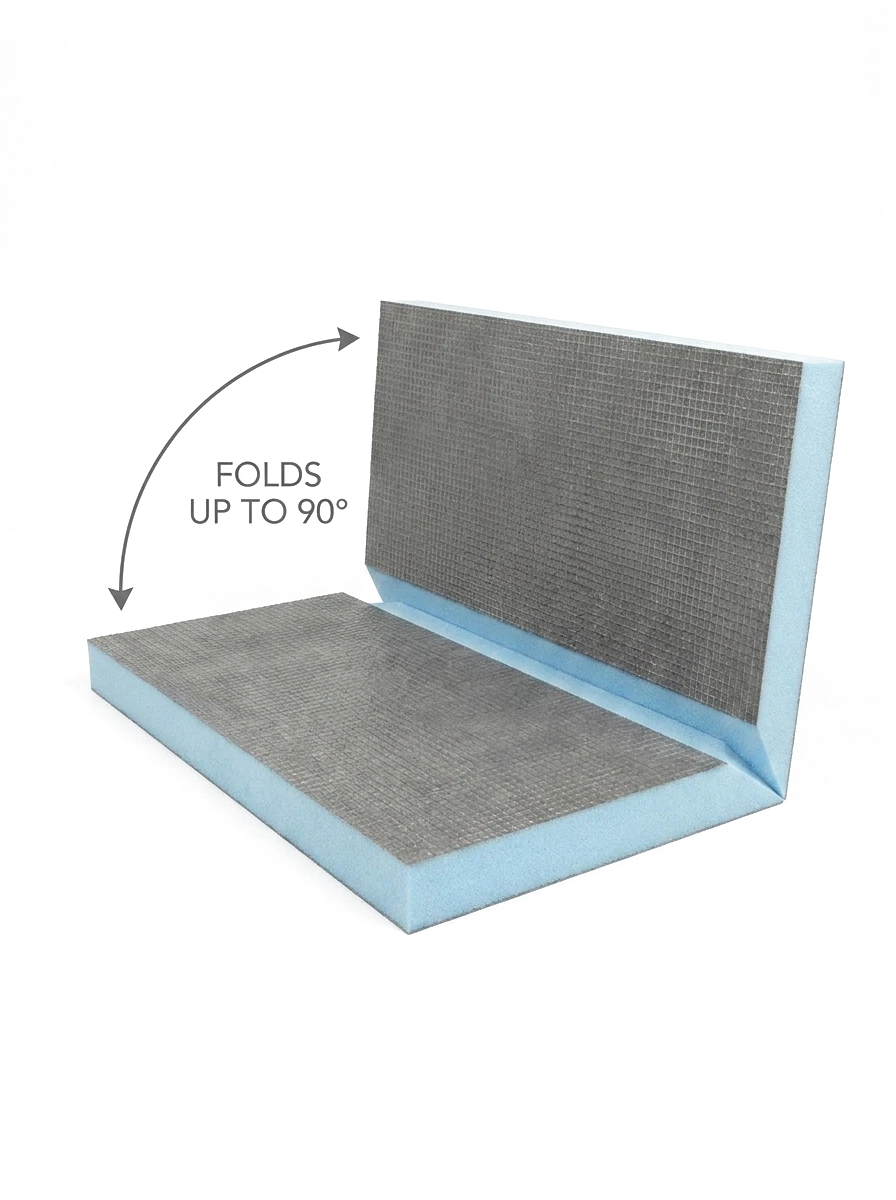

Each Insutile® Angle Board is factory V-scored along its length and folds cleanly to a permanent right angle — 90° straight out of the pack, with custom angles produced to order. The score cuts through the core while the outer face stays intact, so every fold is straight, repeatable, and ready to fix.

  • Folds to 90° out of the pack — custom angles to order
  • Optional factory pre-applied double-sided tape
Insutile® Angle Board factory 90° fold
Factory fold · 90°

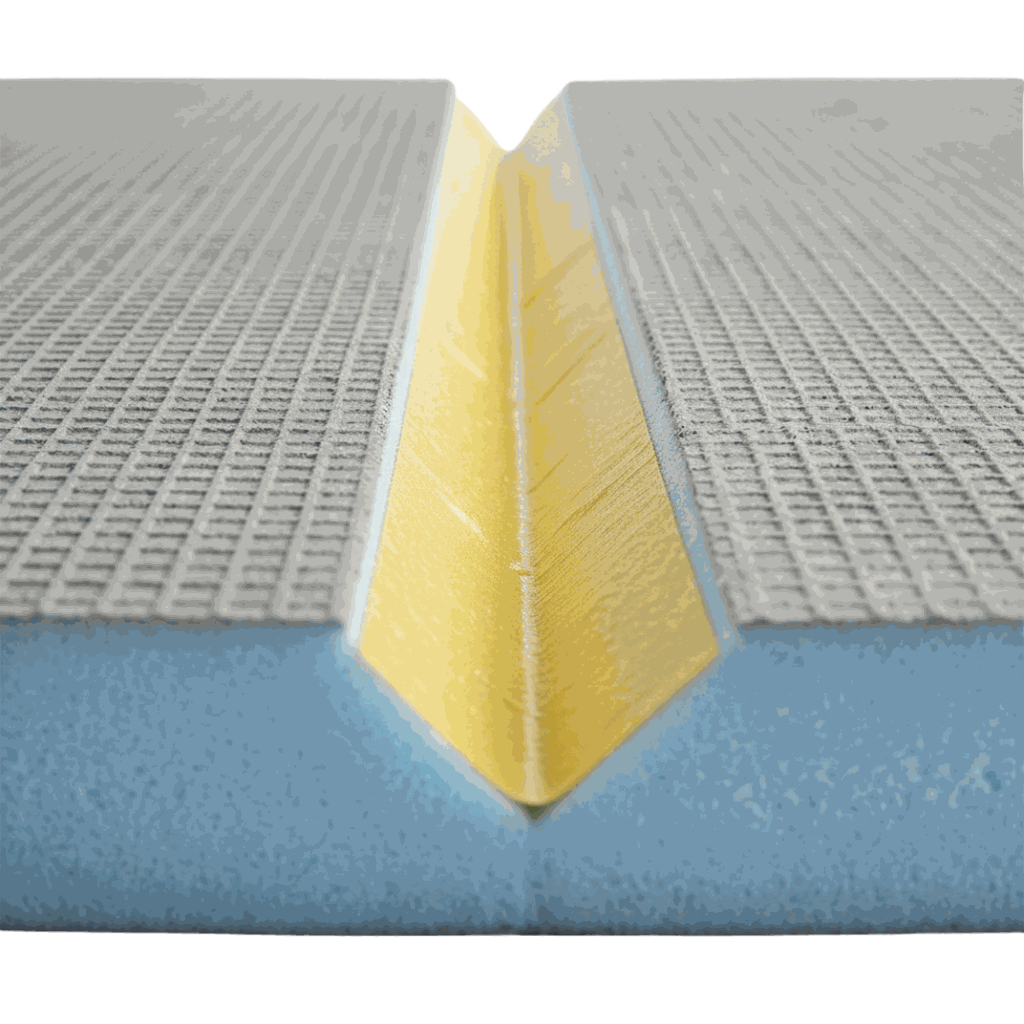

Optional pre-applied double-sided tape in the fold
Optional pre-applied tape

Sizes and Specs

Available dimensions and key performance specs

The dimensions below are our manufacturing standards for Insutile® Angle Board. Specifications, sizing, and fold angles can be customized to suit your project — contact our team for special orders.

Download Data Sheet

Size Chart · Angle Board

ThicknessWidthLength
20150150
20200200
20300300
20400200

All values in mm

Technical Specs

PropertyValue
Folding angle90° · custom on request
Water absorption≤ 0.1 %
Compressive strength≥ 300 kPa
Thermal conductivityλ ≤ 0.034 W/mK
Reaction to fireClass E

Full specifications in the data sheet

Surface Finish

Available in two surface finishes

Regular coat finish
Regular Coat

Smooth standard coating — easier to cut and shape, ideal for DIY and fast site work.

Dual coat patterned finish
Dual Coat · Patterned

Extra strength and durability with a patterned, visually distinctive finish — may require power tools to cut and shape.

Where Insutile® Angle Board Performs

Ideal for a wide range of applications

Ideal for a wide range of applications in residential, commercial, and specialty settings.

View Solutions
Internal Room Corners External Wall Angles Wall-to-Floor Junctions Hot and Cold Water Pipe Runs Bathroom and Kitchen Boxing

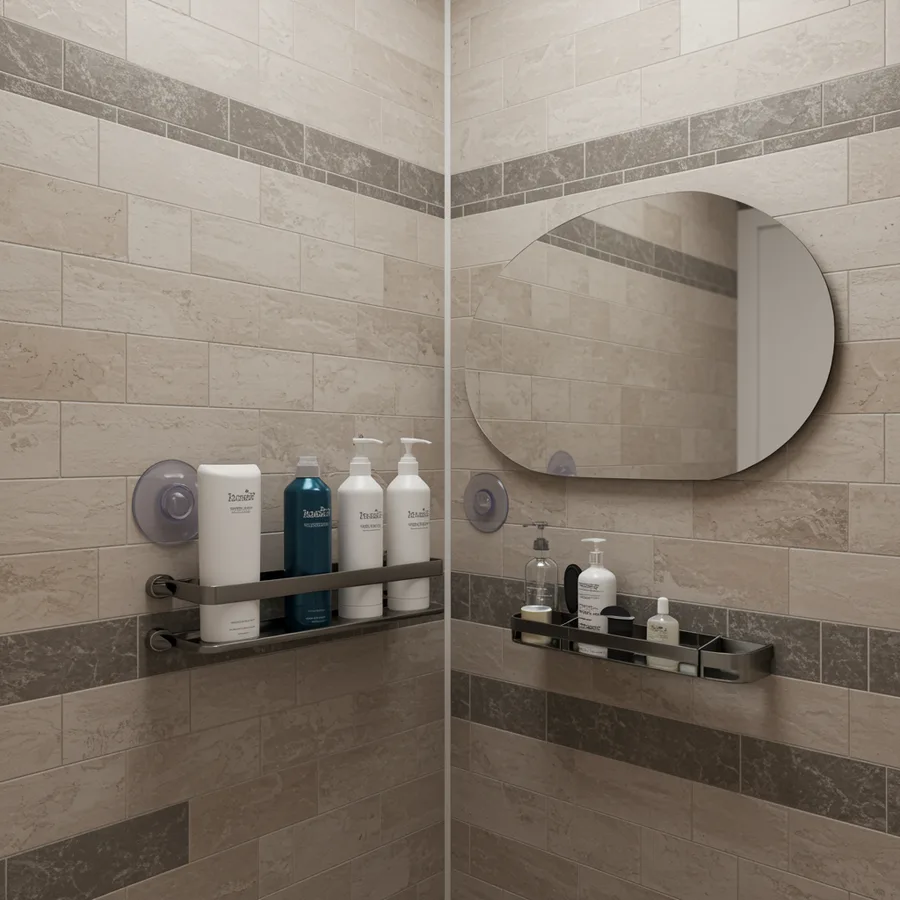

Internal Room Corners

A clean, precise 90° internal corner in a single preformed piece — no mitre cuts, no battening, ready for direct tiling.

External Wall Angles

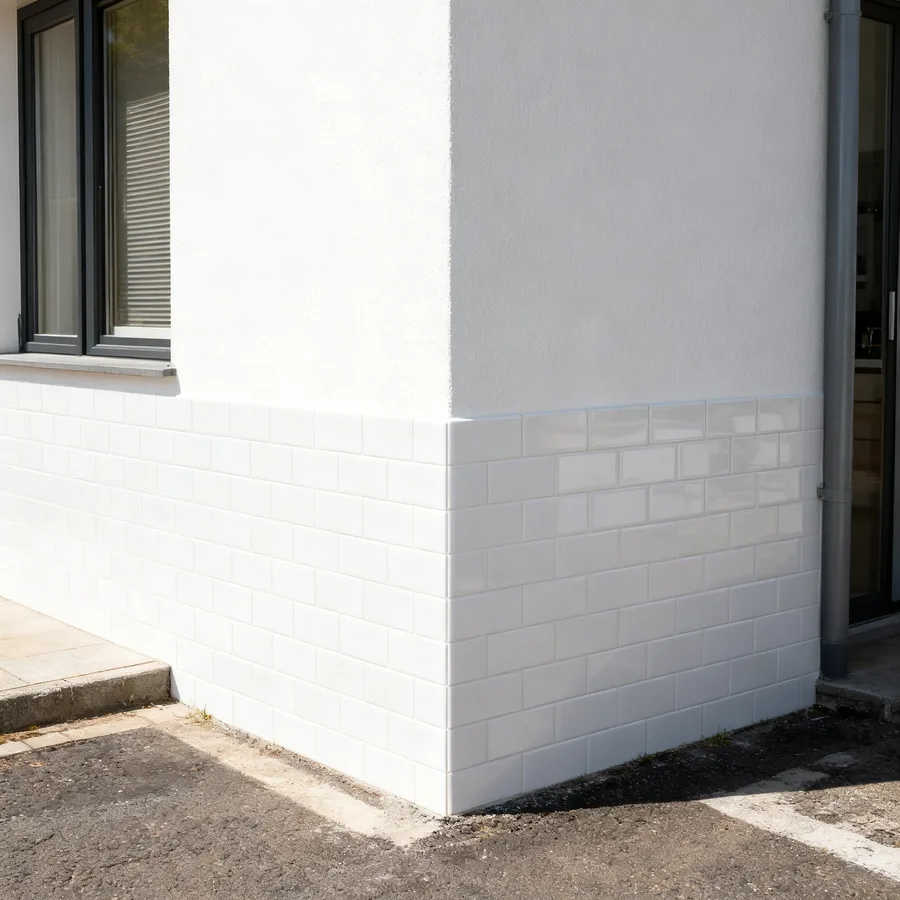

Sharp, impact-resistant external corners on partition walls, columns, and niches — no corner beads or mitred tile edges.

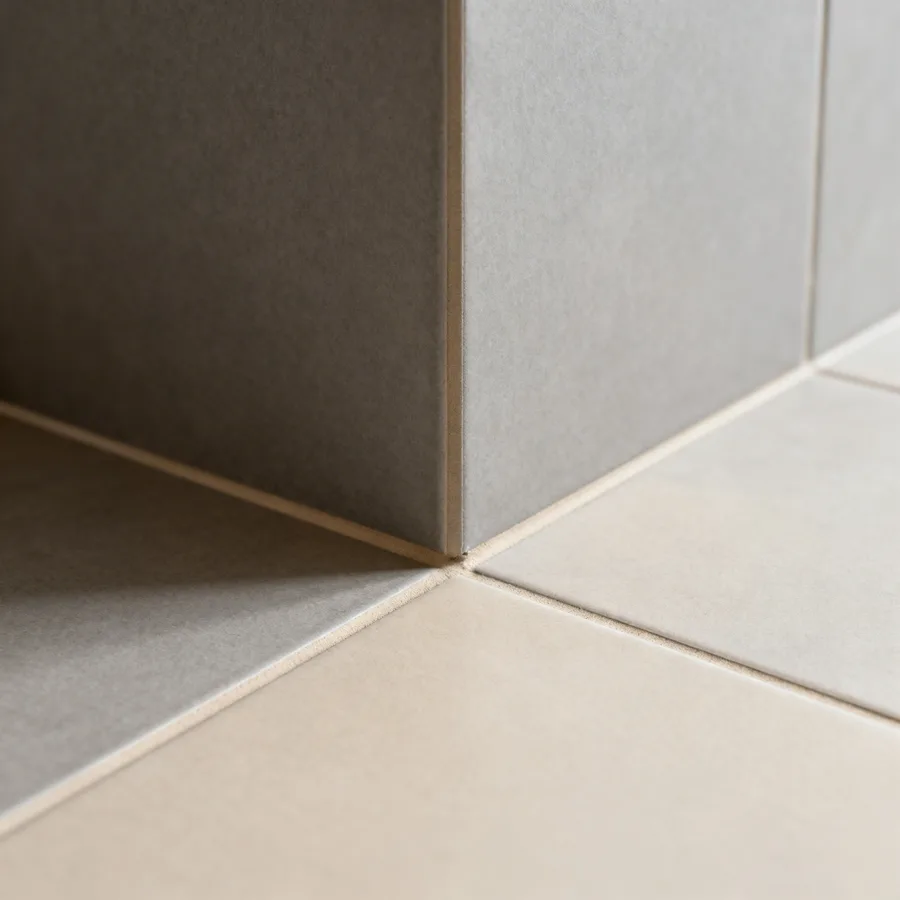

Wall-to-Floor Junctions

A continuous waterproof angle across the most water-critical transition in any wet area.

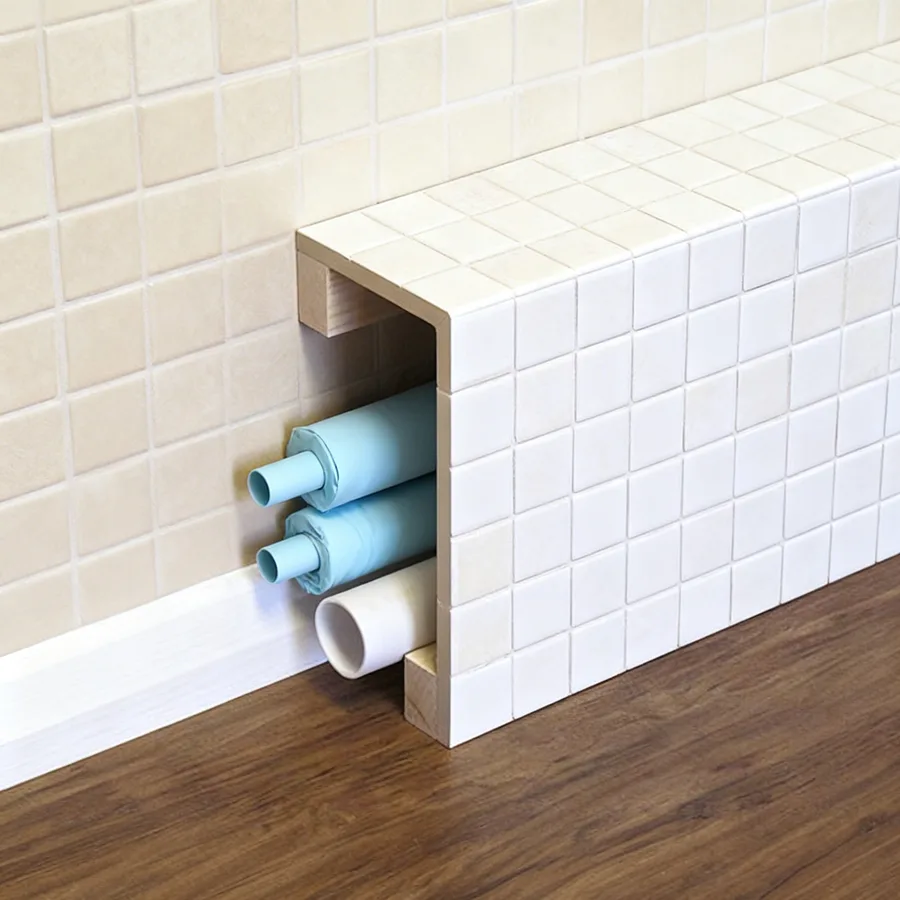

Hot & Cold Water Pipe Runs

Conceal supply lines in kitchens and bathrooms with an insulated, tile-ready enclosure in one step.

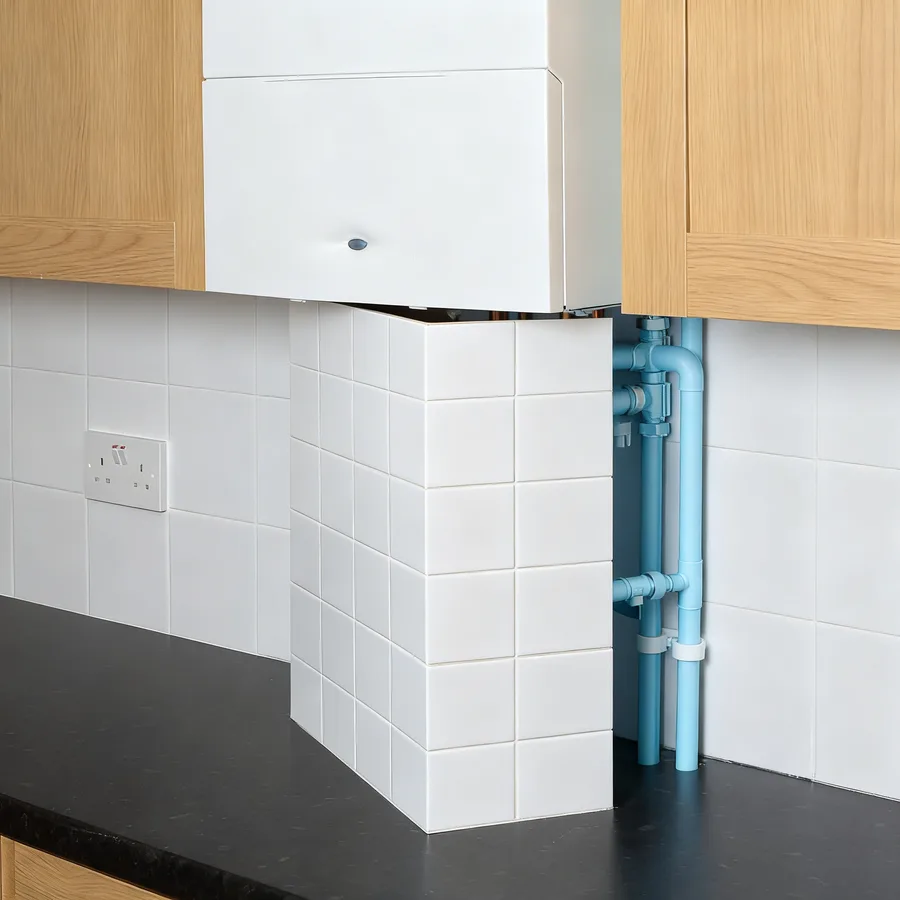

Bathroom & Kitchen Boxing

Waterproof corners and pipe enclosures across residential and commercial wet areas — ideal for renovations.

Key Features & Benefits

Superior performance for corners and pipe concealment

Insutile® Angle Board delivers superior performance for room corners, wall angles, and pipe concealment:

Waterproofing

XPS core and cementitious faces form a seamless barrier at corner junctions. In showers, a waterproofing membrane is still applied in most cases.

Perfect for Pipe Boxing

One preformed fold replaces stud-and-board construction — waterproof, insulated, tile-ready enclosure in a single step.

Excellent Tile Adhesion

Tile directly onto the cementitious face with standard thin-set — no primer needed, superior bond strength in corners.

Compact & Space-Efficient

Slim profile delivers support and waterproofing in minimal thickness — saves space vs. timber-and-plasterboard builds.

Mold & Mildew Resistant

XPS core and mineral face resist biological colonization — corners stay clean and hygienic in humid bathrooms and kitchens.

Lightweight

One person can position and hold boards during assembly — less fatigue and faster work in confined spaces.

Easy to Cut and Assemble

Cuts cleanly with basic hand tools — precise mitres, clean pipe holes, no delamination, no specialist skills needed.

Perfect for Renovations

One piece replaces timber and plasterboard — less dust, less waste, faster strip-out to tile-ready.

Access Panel Compatible

Modular structure makes it simple to integrate removable access panels for valves and service points — without breaking tile.

Installation Steps

Seven essential steps for a successful install

Download Guide
01Substrate preparation 02Cutting & dry-fit 03Fixing with screws & washers 04Joint treatment 05Waterproofing where needed 06Tiling 07Finishing
Installation Tip · Pre-Applied Tape

Order Insutile® Angle Board with double-sided tape pre-applied — the tape holds the board square while both wings are fixed with screws and washers, with no clamps, props, or bracing. The tape is available on the accessories page.

Washers Included

Fixing washers are supplied with Insutile® Angle Board — optional pre-applied tape and more installation accessories are available to order.

View Accessories

Steps shown are a general guide — site conditions and substrates vary; always confirm the method with a qualified contractor or specifier.

How We Compare

Insutile® Angle Board vs alternative boxing methods

How Insutile® Angle Board compares with timber frame and plasterboard, MDF or chipboard boxing, and pre-made plastic boxing.

PropertyInsutile® Angle BoardTimber Frame + PlasterboardMDF / Chipboard BoxingPre-Made Plastic Boxing
Waterproof✓✗✗✓
Tile-Ready Surface✓✗✗✗
Self-Supporting✓✓✓✓
Mold Resistance✓✗✗✓
Installation Speed✓✗✓✓
Custom Tile Finish✓✓✓✗
Weight✓✗✗✓
Score7 / 72 / 73 / 75 / 7

Beyond the board: the complete wall system compared with a traditional brick wall — programme, labour, cost packages and a client decision matrix for a 100 m² module.

Download the comparison model

FAQ

Frequently asked questions

What is Angle Board used for?

Internal room corners, external wall angles, wall-to-floor junctions, hot and cold water pipe runs, and boxing in bathrooms and kitchens.

What angle does it fold to?

It is factory V-scored along its length and folds to 90°. Other angles are produced to order.

What sizes are available?

Four standard wing sizes in 20 mm board: 150 × 150, 200 × 200, 300 × 300 and 400 × 200 mm. Other sizes are made to order.

Does the fold need clamping while it sets?

Not when the board is ordered with the pre-applied double-sided tape. The tape holds the fold square while both wings are fixed with screws and washers.

Is a waterproofing membrane needed at the corners?

The XPS core and the cementitious faces form a continuous barrier at the corner. In showers, a waterproofing membrane is still applied in most cases.

Range

Explore Our Range

Insutile® offers a complete line of specialty construction insulation products:

All Products

Ready to Specify Angle Board?

Our technical team is on hand to help you choose the right system, get a quote, or find your nearest distributor.
