Curves · Columns · Arches

Insutile® Flex Board

Bendable Tile Backer Boards

Precision-cut XPS foam board with cementitious coating — bends to a tight radius for curved walls, columns, arches and custom shapes while maintaining waterproofing and tile adhesion.

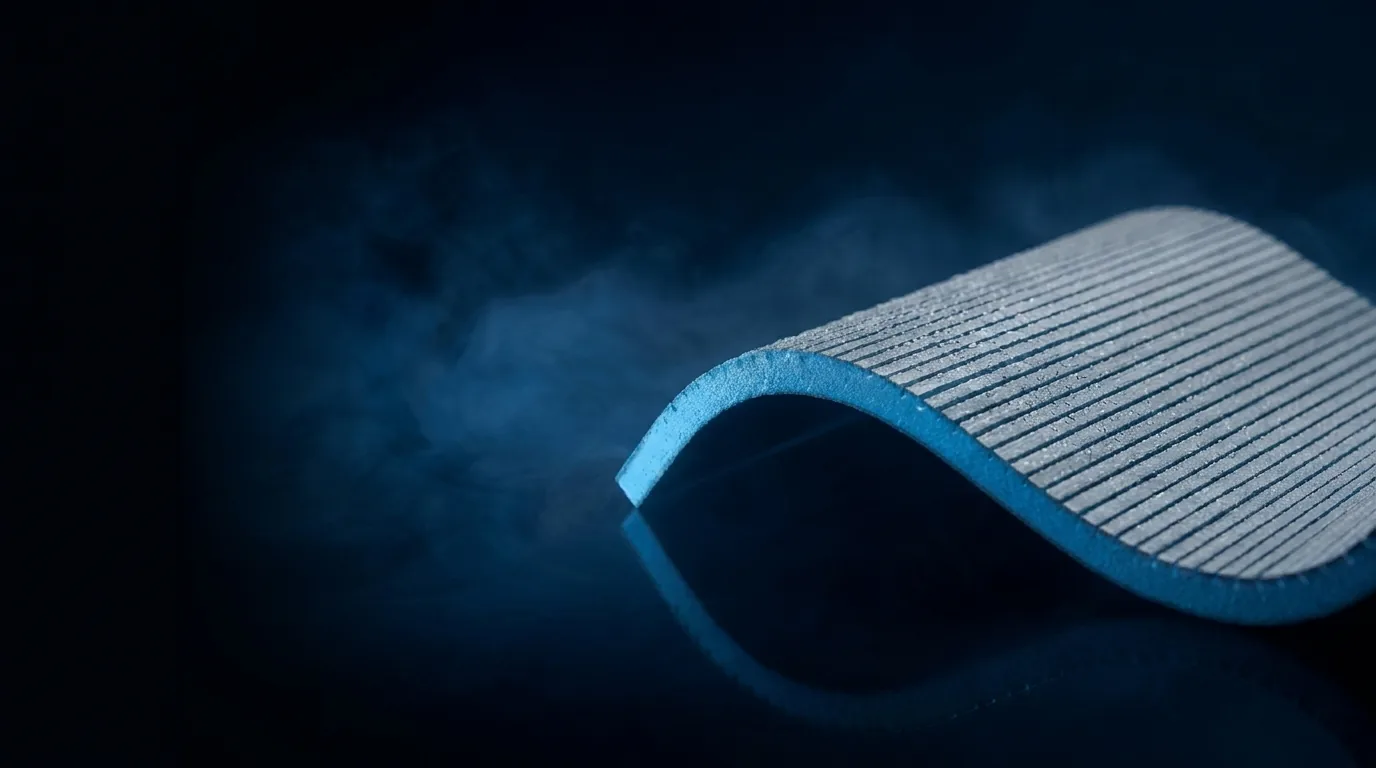

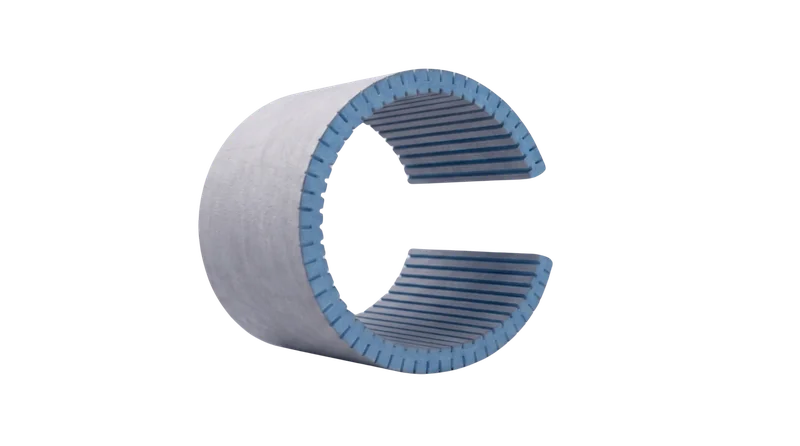

Insutile® Flex Board bent into an open curve
Home/Technology/Flex Board

What is Insutile® Flex Board?

Flexible Yet Rigid — Curved Substrates

Insutile® Flex Board is a waterproof, thermally insulating tile backer board engineered for curves. Precision-cut slots run along one face of its high-density XPS core, letting the rigid board bend smoothly around archways, cylindrical columns, curved partition walls, bath panels, shower seats, and tailored architectural features — achieving radii as tight as 200 mm, well beyond what standard flat boards allow.

Once shaped and fixed against a frame or wall, the slots are filled with tile adhesive to lock the curve in place and restore full structural rigidity. The result is a solid, waterproof, pre-primed cementitious surface ready for direct tiling, mosaic work, or plaster — with the thermal and acoustic benefits of the XPS core built in.

Ready for tiling straight out of the box, Insutile® Flex Board is cost-efficient, easy to install, and the fastest way to turn complex curved designs into finished surfaces.

Insutile® Flex Board
Precision-Cut Slots

Precision-cut slots on one surface enable smooth bending to tight radii without cracking or damage.

Adhesive-Locked Rigidity

Fill slots with adhesive to restore full structural rigidity and create a permanent curved substrate.

Insutile® Flex Board video

Product Video

Flex Board explained

This animation shows how the slit pattern lets the board bend, the two bending directions, the minimum radius of 200 mm, the standard sizes, how the curve is fixed and the slits are filled with tile adhesive, and six typical applications.

All Product Videos

Bending

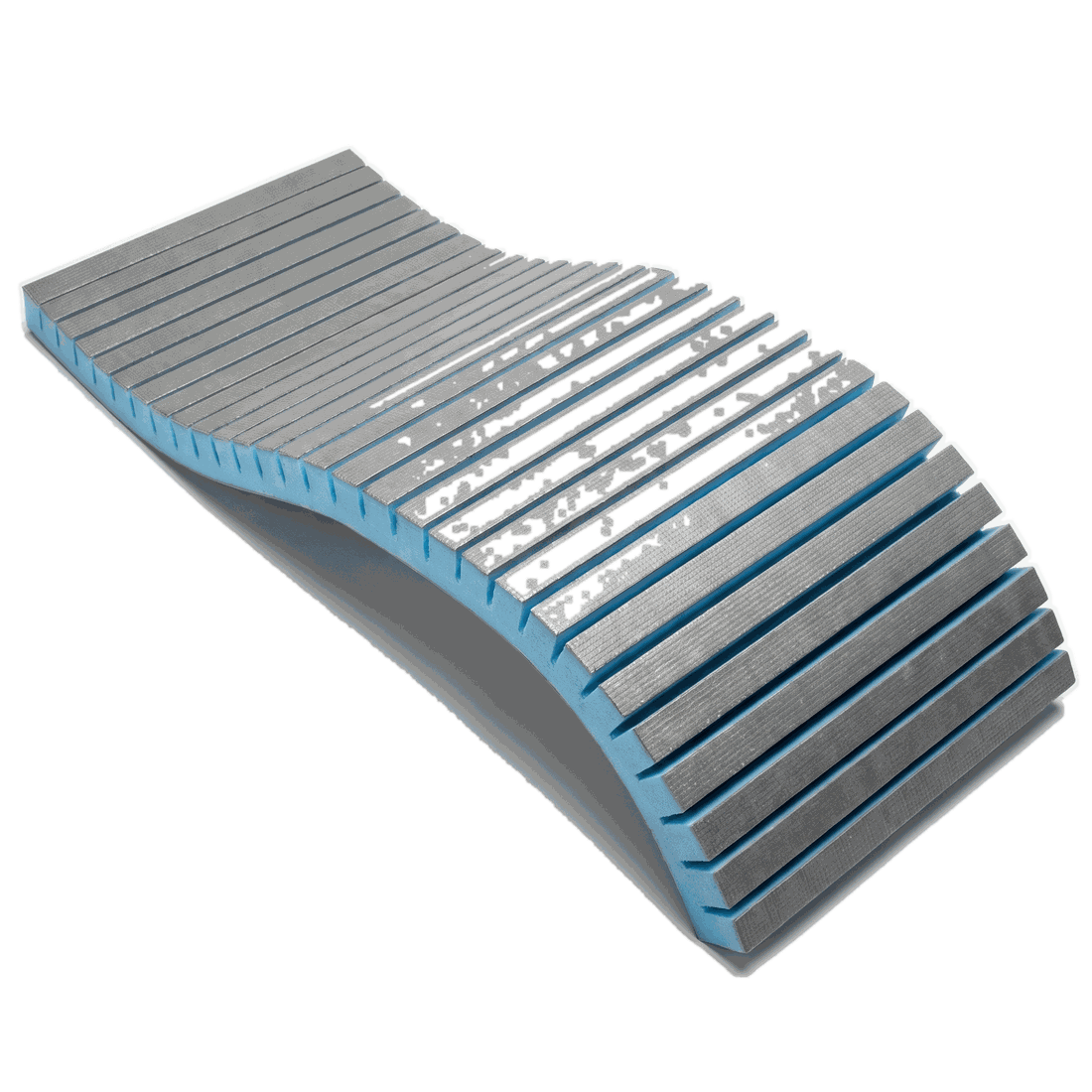

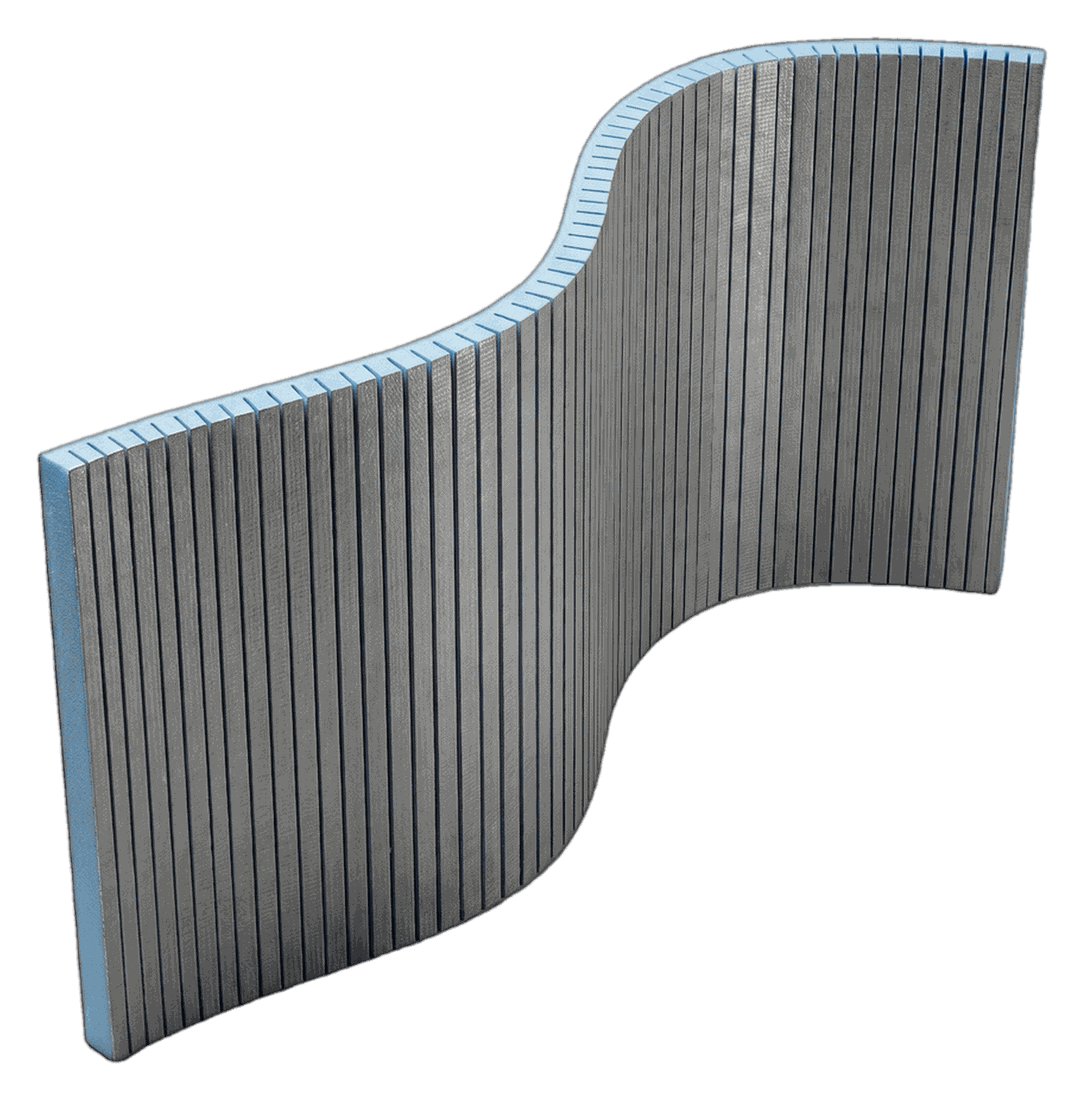

Bi-Directional Bending

Insutile® Flex Board bends either way. Recommended: slits inside the curve for the tightest radius — fill the slits with adhesive and embed fiberglass mesh across the curve. Alternative: smooth face inside when the layout demands it.

The same board forms arches, curved walls, columns, counters, bath panels, and shower seats — one material for any radius from 200 mm up. Where traditional methods rely on heat forming, site-built formwork, or render on mesh, Insutile® Flex Board bends by hand and is waterproof and tile-ready once fixed.

  • Arches, curved walls, columns, counters and seats
  • Standard minimum radius 200 mm — tighter radii to order
  • Custom thicknesses available for specialist projects
  • No heat forming, formwork, or timber bracing

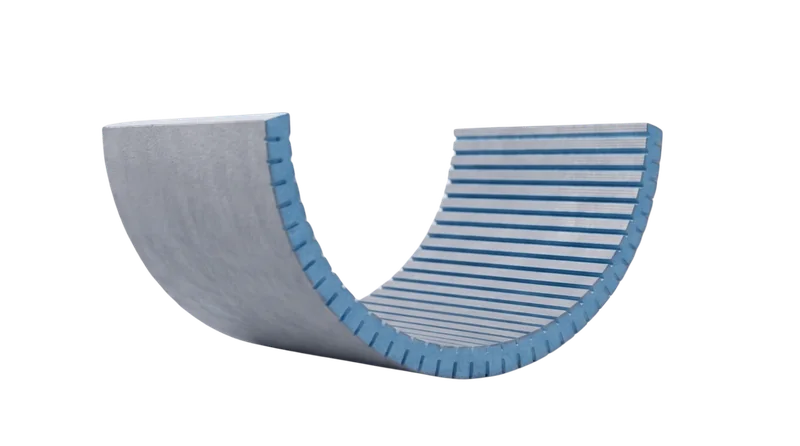

Flex Board bent with slits inside the curve
Slits inside · Recommended

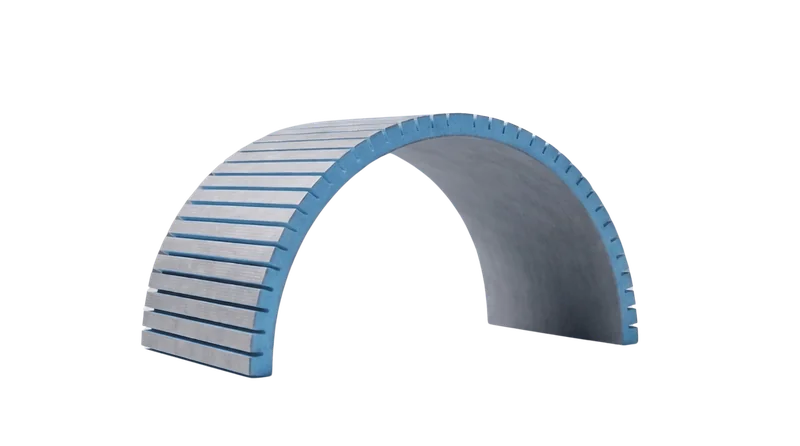

Flex Board bent with slits outside the curve
Slits outside · Alternative

Sizes and Specs

Available dimensions and bend radius

The dimensions below are our manufacturing standards for Insutile® Flex Board. Specifications and sizing can be customized to suit your project — contact our team for special orders.

Download Data Sheet

Size Chart · Flex Board

ThicknessWidthLength
206001200
206002400

All values in mm · 600 × 1200 boards are Insutile® Small · 600 × 2400 boards are Insutile® Large

Technical Specs

PropertyValue
Core materialExtruded polystyrene (XPS)
Water absorption≤ 0.1 %
Compressive strength≥ 300 kPa
Thermal conductivityλ ≤ 0.034 W/mK
Reaction to fireClass E

Full specifications in the data sheet

Standard Bend Radius

R 200mm minimum radius

Insutile® Flex Board bends to a minimum radius of 200 mm using its factory-cut slots — ideal for columns, arches, curved partitions, and organic architectural shapes. No heat forming, no site-mixed forms, no timber bracing required to hold the curve.

Slit spacing and cut depth can be customized to project specifications if needed

Surface Finish

Available in two surface finishes

Regular coat finish
Regular Coat

Smooth standard coating — easier to cut and shape, ideal for DIY and fast site work.

Dual coat patterned finish
Dual Coat · Patterned

Extra strength and durability with a patterned, visually distinctive finish — may require power tools to cut and shape.

Where Insutile® Flex Board Performs

Ideal for a wide range of applications

Ideal for a wide range of applications in residential, commercial, and specialty settings.

View Solutions
Curved Walls and Partitions Rounded Shower Enclosures Cylindrical Columns Arched Doorways and Niches Spa and Wellness Design Reception Desks and Counters

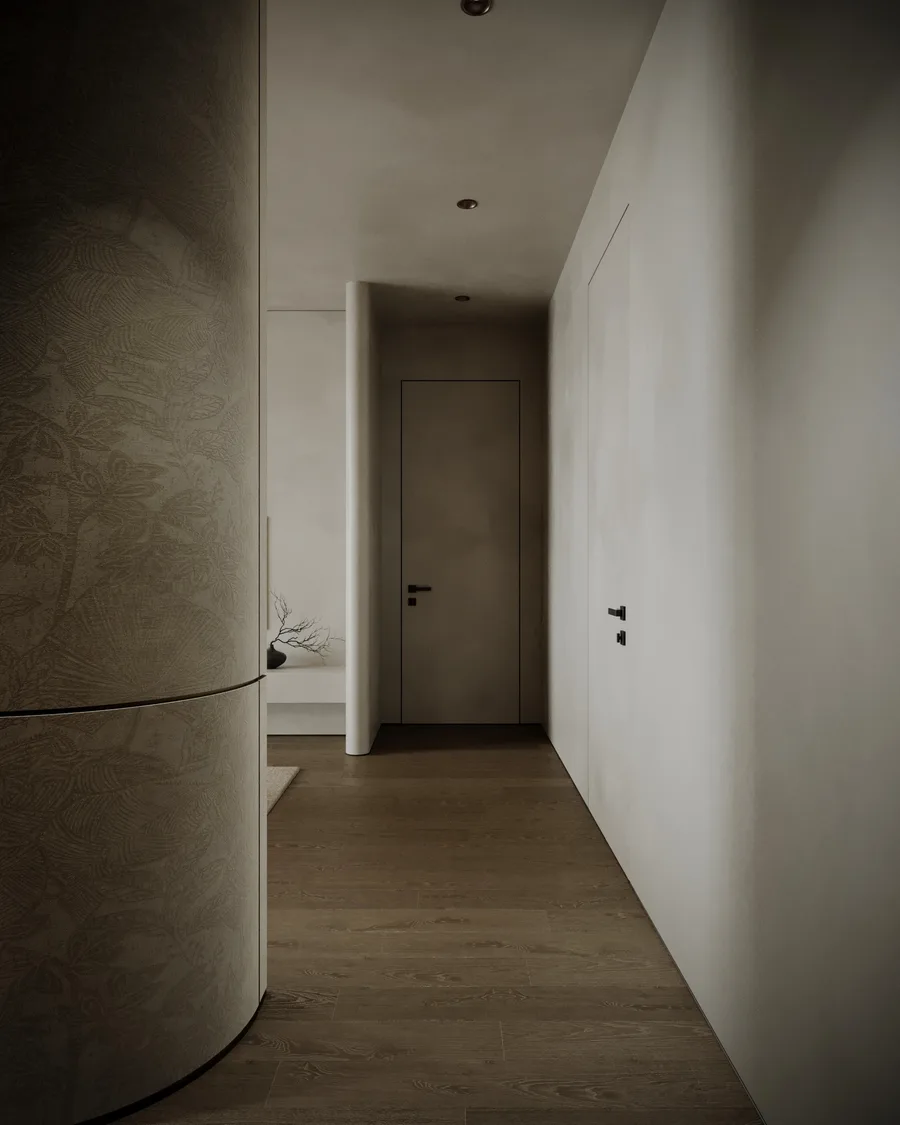

Curved Walls & Partitions

Create sweeping curved interior walls and room dividers with full waterproofing and tile-ready surfaces.

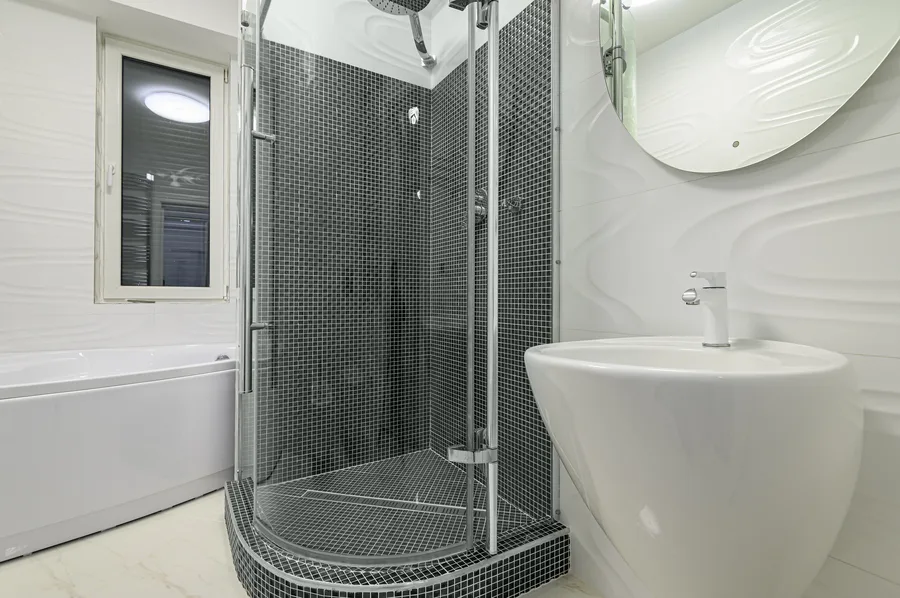

Rounded Shower Enclosures

A clean, waterproof, tile-ready workflow for curved shower builds — the XPS core keeps water out for the life of the build.

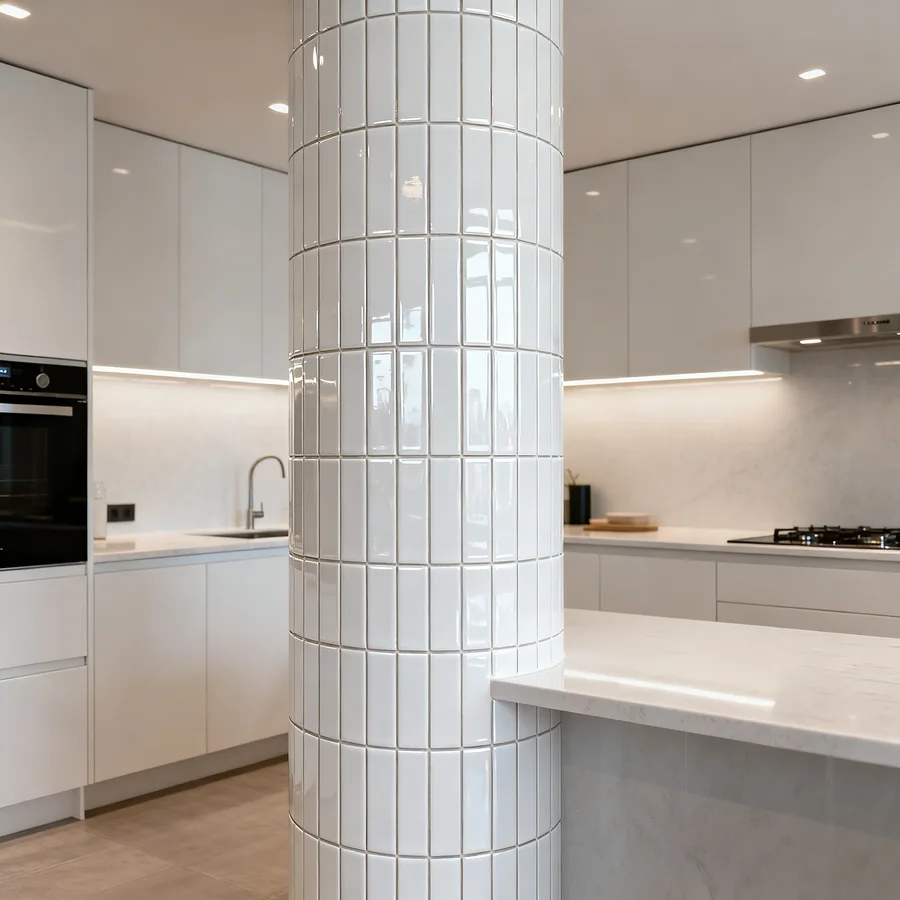

Cylindrical Columns

Wraps a full 360° around round pillars without shims, packers, or site-built formers.

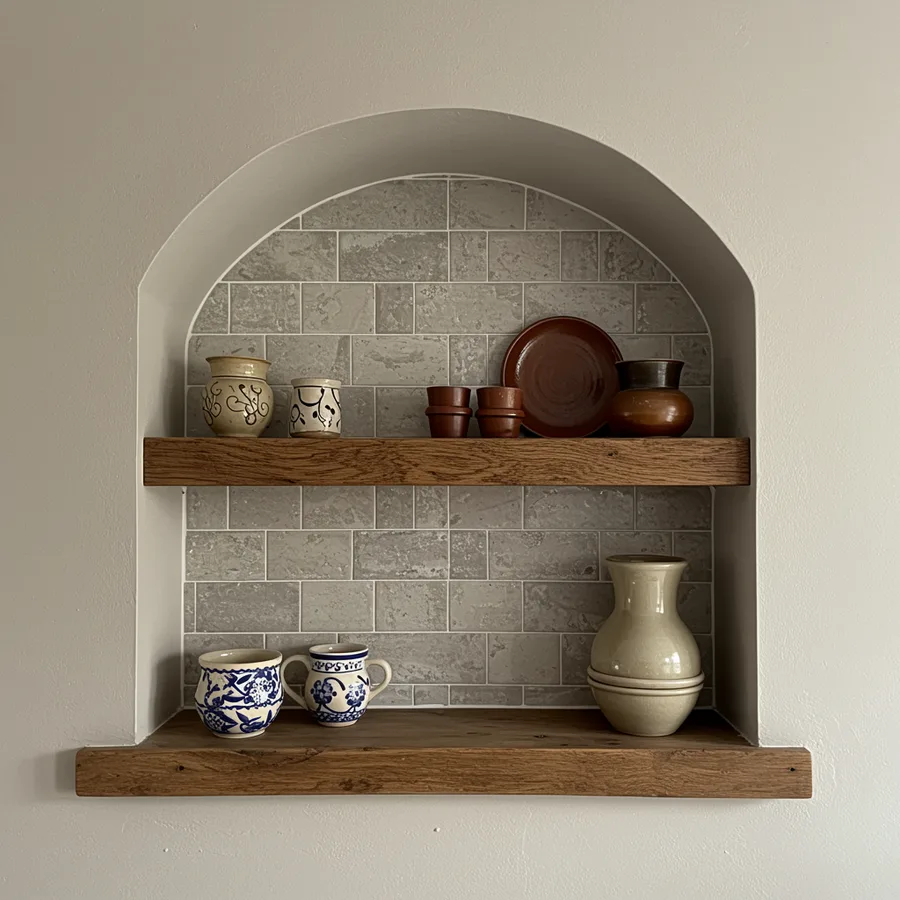

Arched Doorways & Niches

Waterproof, tile-ready arches and alcoves from any radius 200 mm upward — no custom joinery.

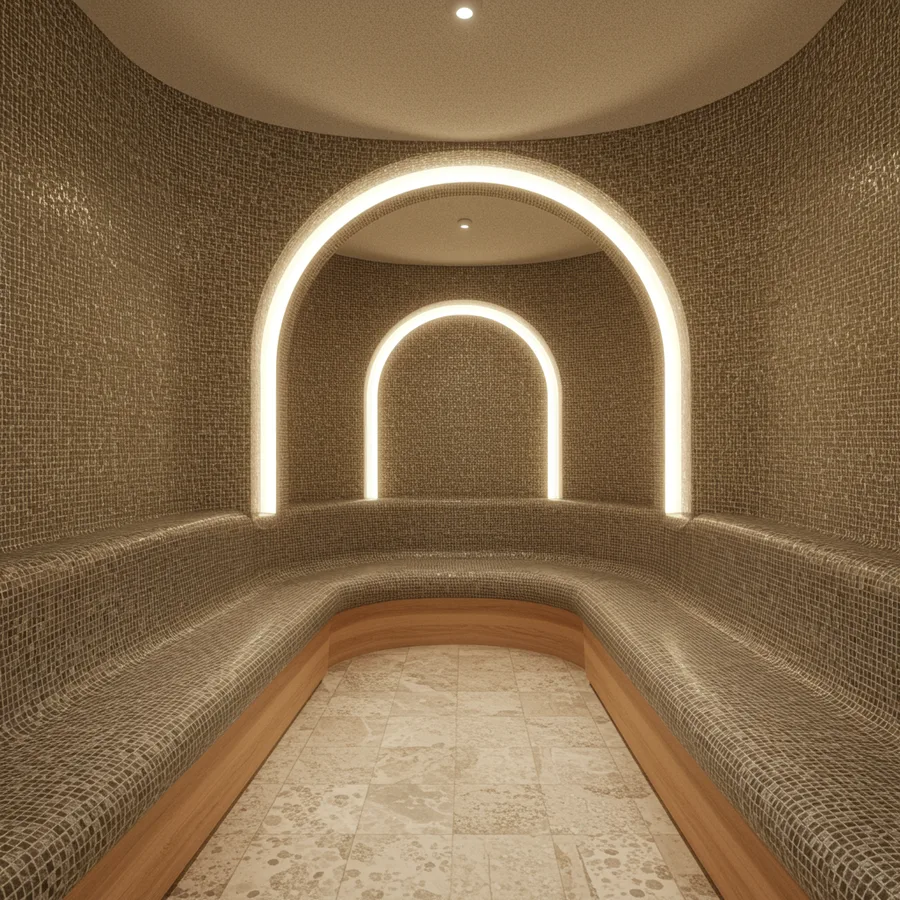

Spa & Wellness Design

Purpose-built for the curves, humidity, and tile work that define spa, sauna, and wellness interiors.

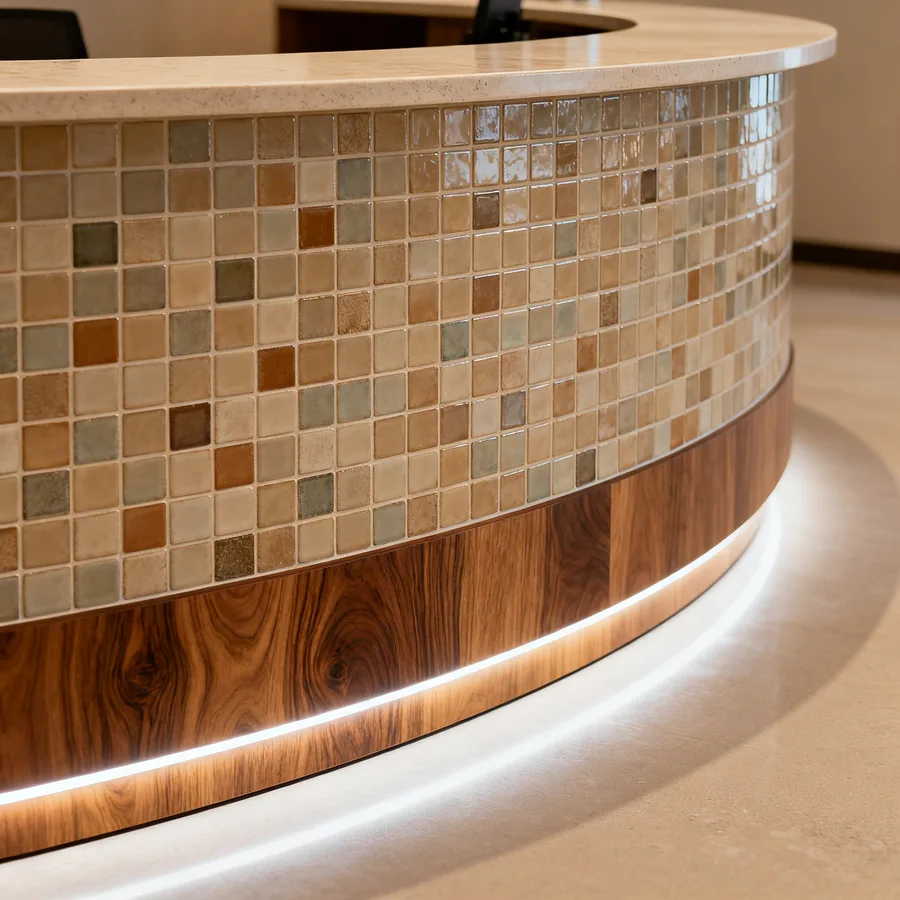

Reception Desks & Counters

Curved desks, counters, and feature bars with a tile-ready, waterproof core — no joinery shop required.

Key Features & Benefits

Superior performance for curved applications

Insutile® Flex Board delivers superior performance for curved applications:

Bendable to a Tight Radius

Pre-cut slots bend smoothly to tight radii — columns, arches, and curved bath panels with no fracture.

Waterproofing

Closed-cell XPS core resists moisture even when bent and adhesive-filled — true wet-area durability.

Excellent Tile Adhesion

Cementitious face bonds to all tile adhesives on curves — no movement, no bond failure.

Pre-Slotted for Easy Bending

Factory slots eliminate on-site cutting — bend, fill with adhesive, done.

Structural Rigidity When Fixed

Once adhesive fills the slots the board cures rigid and holds the curve.

Bi-Directional Bending

Bends either way — slits inside for tightest radius, or smooth face inside when layout demands.

Easy to Handle

Bends by hand — no specialist bending machinery, no equipment rental.

Works with Any Tile Type

Supports ceramic, porcelain, and natural stone on curves — no material restrictions.

Ideal for Architectural Features

Perfect for curved walls, columns, arches, and niches — bring design vision to life.

Installation Steps

Seven essential steps for a successful install

Download Guide
01Substrate preparation 02Cutting & dry-fit 03Bending & fixing with screws & washers 04Filling slits & joint treatment 05Waterproofing where needed 06Tiling 07Finishing
Installation Tip · Bend Direction

Bend with the slits on the inside of the curve for the tightest radius — fill the slits with cement-based adhesive and embed fiberglass mesh across the curve for extra support.

Washers Included

Fixing washers are supplied with Insutile® Flex Board — browse the full range of installation accessories for more.

View Accessories

Steps shown are a general guide — site conditions and substrates vary; always confirm the method with a qualified contractor or specifier.

How We Compare

Insutile® Flex Board vs alternative methods

How Insutile® Flex Board compares with scored standard board, flexible plasterboard, and render on mesh for curved applications.

PropertyInsutile® Flex BoardScored Standard BoardFlexible PlasterboardRender on Mesh
Minimum Bend RadiusVery Tight (200 mm+)Very LimitedModerateLimited
Tile-Ready Surface✓✗✗✗
Waterproof Core✓✗✗✗
Rigid After Bending✓✗✗Partial
Installation SpeedFastSlowModerateSlow
Curve Quality ConsistencyExcellentPoorGoodVariable
WeightLightweightHeavyLightHeavy

FAQ

Frequently asked questions

How tight a curve can Flex Board form?

The standard minimum radius is 200 mm, bent by hand. Tighter radii are made to order.

Which way should the slits face?

Either way. Slits on the inside of the curve give the tightest radius. The smooth face can go on the inside when the layout calls for it.

What sizes does Flex Board come in?

600 × 1200 mm and 600 × 2400 mm, with a standard thickness of 20 mm. Sizes and specifications can be customised to order.

How does the curve become rigid?

Once the board is bent and fixed, the slits are filled with adhesive. When the adhesive cures, the curve is rigid and ready to tile.

Is Flex Board waterproof?

The closed-cell XPS core resists moisture, including when the board is bent and filled. In showers, a waterproofing membrane is applied in most cases.

Range

Explore Our Range

Insutile® offers a complete line of specialty construction insulation products:

All Products

Ready to Bend Your Vision Into Reality?

Our technical team is ready to help you choose the right thickness, discuss bend radii, and ensure perfect installation on your curved surfaces and architectural features.
