Bathrooms · Wetrooms · Kitchens

Complete Construction Solutions

Lightweight Construction Boards

Fully-engineered Insutile® systems for demanding wet and dry spaces — waterproof, thermally efficient, tile-ready.

Insutile® board system installed in a bathroom with sloped shower underlay and linear drain
Home/Solutions

The Insutile® System

Each solution is a complete system

An Insutile® solution defines the full build-up for its space — the boards, the matching accessories, and the installation details that connect them. The components are specified together and tested for compatibility, so the installed result matches the specification.

01 Scope

Boards, accessories, and installation details are specified as one package.

02 Compatibility

Components are tested for use together and covered by one system warranty.

03 Supply

All components are manufactured and supplied by Insutech — one point of responsibility.

Choosing a board or thickness?

The thickness guide sets out which thickness to use for each application — or request a sample and assess the board directly.

Insutile® Bathroom Solution video

Solution Video

The bathroom solution explained

This animation follows one bathroom from bare walls to finished tiles and shows where each board is used: Build Board on the walls, the floor and the framed elements, Shower Underlay for the shower floor, Angle Board for corners and pipe boxing, and Flex Board for the curved end of the bath.

View Bathroom Solution All Product Videos

Choose Your Space

Solutions by space

Each solution pairs the boards, accessories, and installation details for its space into a single tested package.

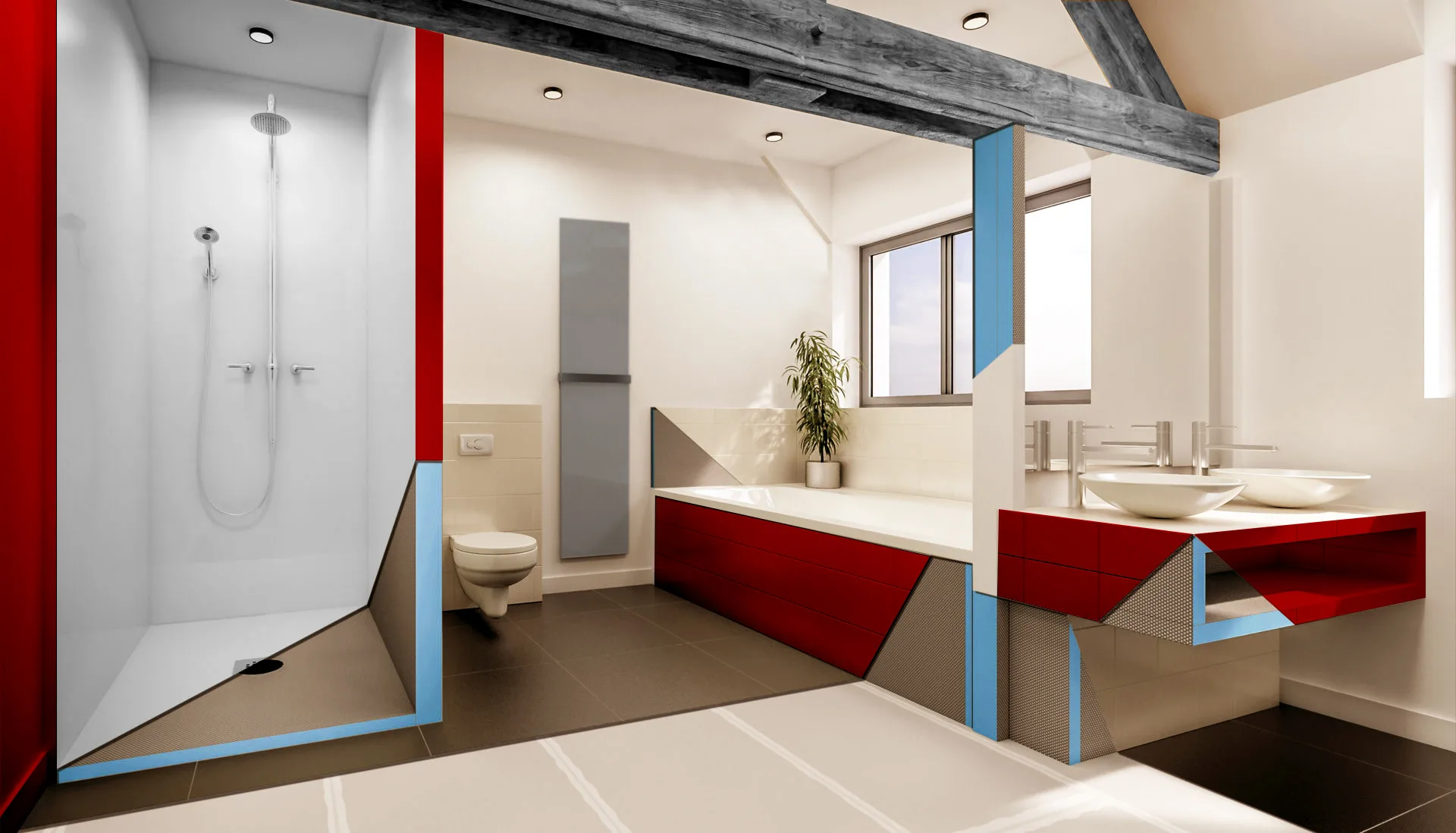

Insutile® Bathroom Solution — complete wetroom system 01 · Bathrooms & Wetrooms

Bathroom Solutions

A fully-waterproof, tile-ready building system for bathrooms, wetrooms and walk-in showers — combining Build Board, Shower Underlay, Angle Board and sealing accessories into one tested package.

Explore Bathroom Solutions
Insutile® Kitchen Solution — thermally efficient kitchen system 02 · Kitchens

Kitchen Solutions

Moisture-resistant, thermally insulating substrates purpose-built for kitchens — strong enough for stone countertops, stable enough for high-moisture areas, and tile-ready as supplied.

Explore Kitchen Solutions
Insutile® Spa & Wellness Solution — steam room and spa system 03 · Spas & Steam Rooms

Spa & Wellness Solutions

Heat- and moisture-proof substrates for steam rooms, spas and wellness suites — insulated to hold heat, shaped to curves, and tile-ready on walls, floors, benches and loungers.

Explore Spa Solutions
Insutile® Laundry & Utility Solution — utility room system 04 · Laundry & Utility

Laundry & Utility Solutions

Hard-wearing, moisture-resistant substrates for laundry and utility rooms — standing up to humidity, leaks and heavy machines, with clean tiled boxing for pipes and services.

Explore Laundry Solutions
Insutile® Hotels & Commercial Solution — hotel bathroom system 05 · Hotels & Commercial

Hotels & Commercial Solutions

One tested bathroom system for hotels and commercial fit-outs — lightweight to handle at scale, fast to install room after room, specified once for every floor.

Explore Commercial Solutions
Insutile® Roof & Terrace Solution — insulated finished roof system 06 · Roofs & Terraces

Roof & Terrace Solutions

An insulated, finished roof and terrace build-up — Easy Board lays the tiled surface and the insulation in one step, with Build Board and Angle Board forming parapets, benches, and planters.

Explore Roof Solutions

Shower Solutions

Shower trays made to measure

Insutile® Shower Underlay trays are factory-formed with the slope built in, in point-drain and line-drain versions. Point drains sit at the centre of the tray or offset toward an edge; line drains run along one edge or across the tray.

Standard trays are square from 900 × 900 mm to 1500 × 1500 mm and rectangular up to 1000 × 1800 mm — and every tray can be custom-made to any size, slope, or drain position to suit the room.

  • Point drains — centre or offset placement
  • Line drains — along an edge or across the tray
  • Square trays from 900 × 900 to 1500 × 1500 mm; rectangular up to 1000 × 1800 mm
  • Custom sizes, slopes, and drain cut-outs to order

Drains — boards are customized to fit any drain, as per order. If you don't have a specific drain model in mind, the standard drains we supply are listed on the accessories page.

View Accessories View Shower Underlay
Insutile® shower trays — point drain and line drain versions

Specialised Solutions

Specialised applications

The same boards are used for a set of specialised applications — specified with the same accessories and installation details as the room systems.

Tiled counter, bench and side table built on Insutile® boards Counters · Tables · Furnishings

Tiled Furniture & Counters

Rigid, waterproof substrates for tiled counters, tables, shelving and built-in furniture. The boards are light enough for free-standing forms and strong enough to carry stone finishes, with Angle Board closing and sealing exposed edges.

Contact Our Team
Tiled terrace with planter wall and outdoor kitchen Outdoor Kitchens · Garden Features

Exterior Applications

The closed-cell XPS core does not absorb water, making the boards a dimensionally stable substrate for sheltered exterior work — outdoor kitchens, garden features, and façade details. Exterior build-ups are specified per project with our technical team.

Contact Our Team
Insulated tiled roof terrace built on Insutile® boards Roofs · Terraces · Balconies

Roofs & Terraces

Easy Board lays an insulated, finished tiled surface on roofs, terraces and balconies in a single step — with Build Board and Angle Board forming parapets, upstands, and built-in features.

Explore Roof Solutions
Underfloor heating pipes installed over Insutile® insulation boards Electric & Water-Based Systems

Underfloor Heating

An insulating substrate layer directs heat upward into the floor finish rather than into the slab below — shorter warm-up times and lower running costs. The boards carry electric mats and water-based pipe systems directly.

Contact Our Team

Specification Support

Our technical team advises on system selection, build-ups, and project-specific details — from specification through installation.
