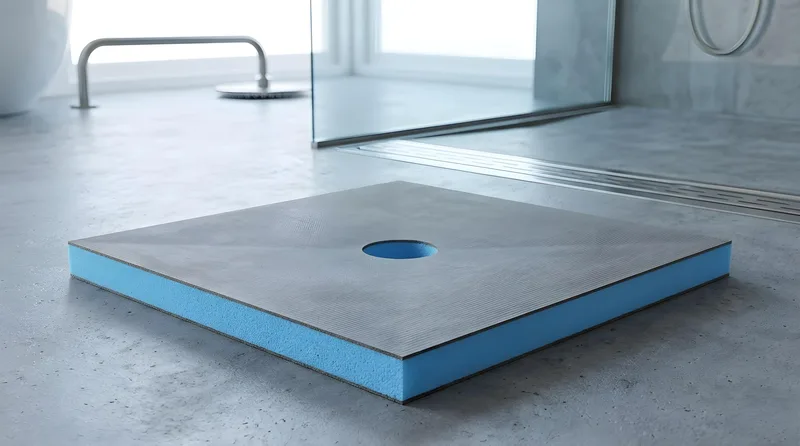

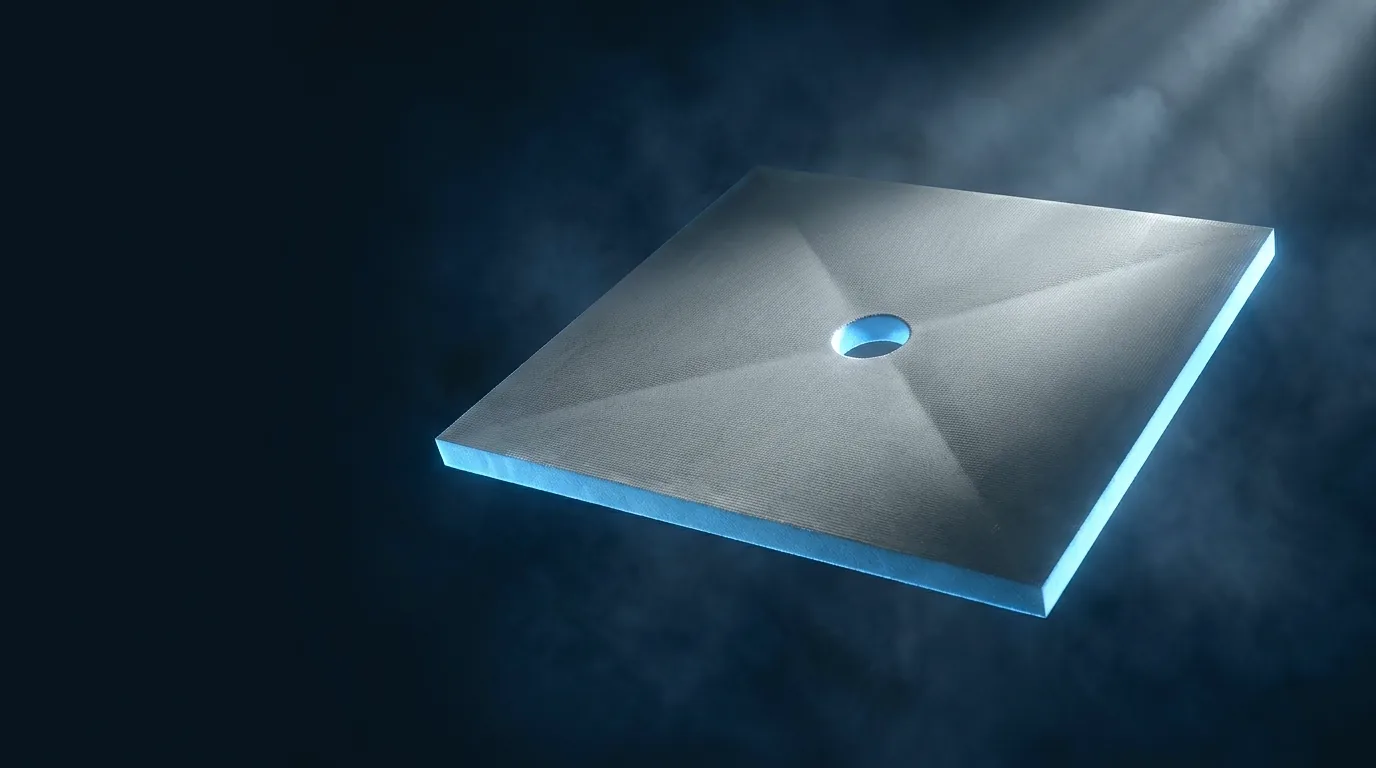

Insutile® Shower Underlay pre-sloped tray
Home/Technology/Shower Underlay

What is Insutile® Shower Underlay?

Shower-Grade Waterproof Substrate

Insutile® Shower Underlay is a specialized tile backer board engineered for the unique demands of shower floor installations. The board provides a rigid, dimensionally stable substrate that bonds reliably with all standard tile adhesives and supports ceramic, porcelain, mosaic, and natural stone tile finishes.

Its closed-cell XPS core is 100% waterproof, providing an intrinsic moisture barrier while maintaining excellent structural integrity under constant water exposure and foot traffic loads. In most showers a waterproofing membrane is applied over the tray and its joints before tiling; some build-ups do not need one.

Insutile® Shower Underlay
Built for Wet Service

Engineered for constant water exposure, thermal cycling, and foot traffic loads.

Waterproof Core

Closed-cell XPS core provides a 100% waterproof barrier. A waterproofing membrane is applied over it in most showers.

Insutile® Shower Underlay video

Product Video

Shower Underlay explained

This animation shows the built-in fall in section, the three drain layouts with their standard sizes, trays made to order, a level-access floor set flush with Build Board, and the accessories used with the tray.

All Product Videos

Options

Drain Types & Custom Options

Every Insutile® Shower Underlay tray is factory-formed with the slope built in, in point-drain and line-drain versions. Point drains sit at the centre of the tray or offset toward an edge; line drains run along one edge or across the tray. Standard trays are square from 900 × 900 mm to 1500 × 1500 mm and rectangular up to 1000 × 1800 mm — custom sizes, slopes, and drain shapes are produced to order. Boards can also be customized to fit any drain — specify the drain with your order and the cutout, placement, and slope are formed to match it.

  • Point drains — centre or offset placement
  • Line drains — along an edge or across the tray
  • Square trays from 900 × 900 to 1500 × 1500 mm; rectangular up to 1000 × 1800 mm
  • Custom sizes, slopes, and drain shapes to order
  • Customized to fit any drain, as per order
Insutile® Shower Underlay with point drain
Point drain · centre or offset
Insutile® Shower Underlay with line drain
Line drain · edge placement

Sizes and Specs

Available dimensions and key performance specs

The dimensions below are our manufacturing standards for Insutile® Shower Underlay. Tray sizes, drain placement, and slope can be customized to suit your project — contact our team for special orders.

Download Data Sheet

Size Chart · Shower Underlay

WidthLength
Point Drain · Centre
900900
10001000
12001200
15001500
Point Drain · Offset
10001000
12001200
9001200
9001500
9001800
Line Drain
10001000
9001200
10001400
10001800

All values in mm · custom tray sizes available to order

Technical Specs

PropertyValue
Core materialExtruded polystyrene (XPS)
Drain typesPoint or line drain
Water absorption≤ 0.1 %
Compressive strength≥ 300 kPa
Thermal conductivityλ ≤ 0.034 W/mK
Reaction to fireClass E

Full specifications in the data sheet

Drain Configurations

3drain configurations — centre · offset · linear

Compatible with centre, offset, and linear drains — and boards can be customized to fit any drain, as per order. The pre-formed slope guides water cleanly to whichever placement and shape you specify.

Accessories

Drains, fleece layers, and other accessories are available to order on the accessories page.

View Accessories

Surface Finish

Available in two surface finishes

Regular coat finish
Regular Coat

Smooth standard coating — easier to cut and shape, ideal for DIY and fast site work.

Dual coat patterned finish
Dual Coat · Patterned

Extra strength and durability with a patterned, visually distinctive finish — may require power tools to cut and shape.

Where Insutile® Shower Underlay Performs

Ideal for a wide range of applications

Ideal for a wide range of applications in residential, commercial, and specialty settings.

View Solutions
Shower Enclosure Floors Walk-In Shower Bases Wet Room Floors Steam Room Floors Hotel Bathroom Floors Spa Shower Areas

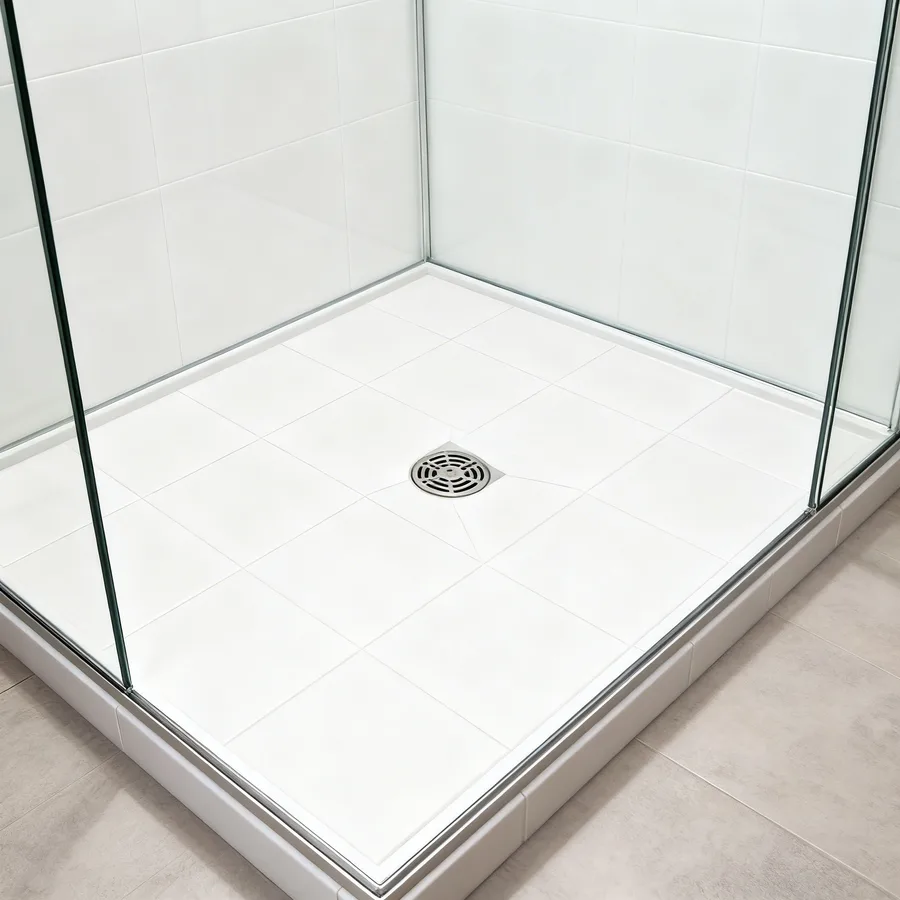

Shower Enclosure Floors

A rigid, pre-sloped waterproof base for enclosed shower floors, ready for waterproofing and tiling.

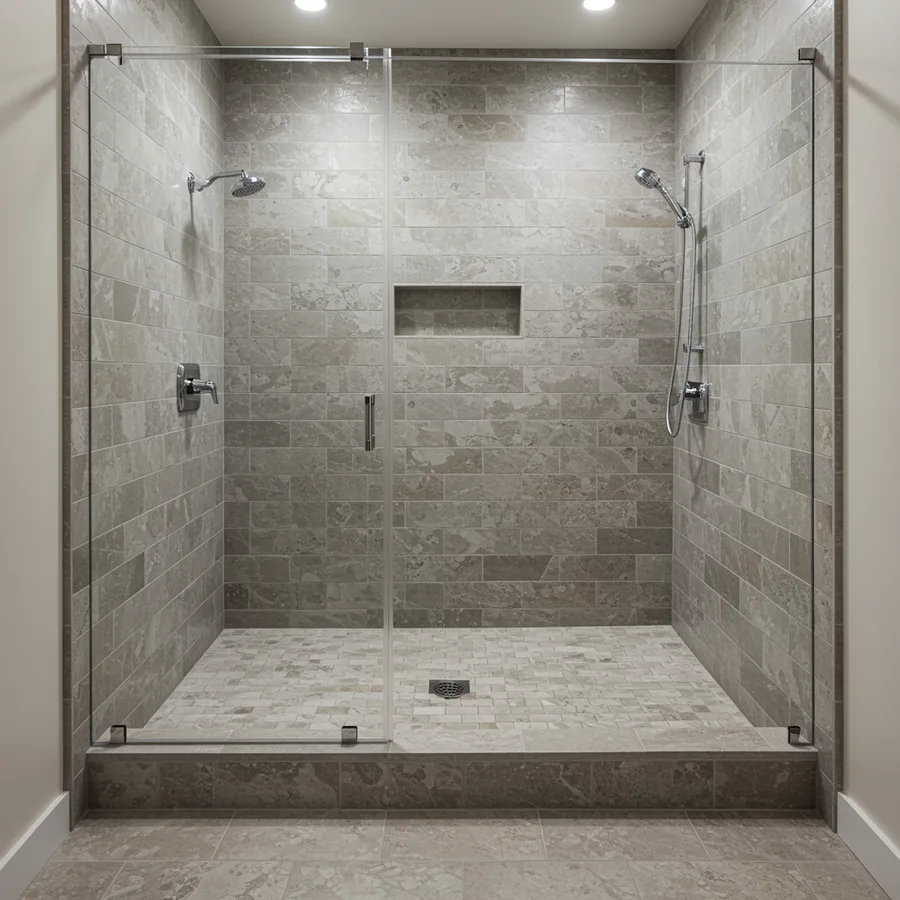

Walk-In Shower Bases

Barrier-free bases that drain cleanly with no lips or thresholds — stable through constant water load.

Wet Room Floors

A continuous waterproof base from wall to wall, with the slope pre-built in so the fall stays true after tiling.

Steam Room Floors

Dimensionally stable from ambient to steam temperature, through constant condensation and thermal cycling.

Hotel Bathroom Floors

Fast, repeatable fit-out with a consistent slope across hundreds of bathrooms — no site-mixed screed.

Spa Shower Areas

Commercial-grade performance under heavy daily use, aggressive cleaning, and constant moisture.

Key Features & Benefits

Superior performance across all critical categories

Insutile® Shower Underlay delivers superior performance across all critical categories:

100% Waterproof Core

Closed-cell XPS stops water reaching the subfloor — no damage, no mould, no rot.

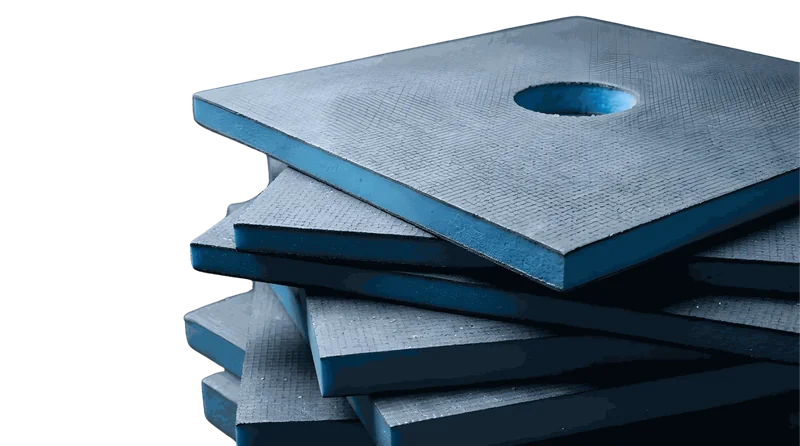

High Compressive Strength

Rigid XPS withstands foot traffic and tile loads — no deflection, no cracked grout.

Excellent Tile Adhesion

Textured face grips all standard adhesives — tiles stay locked through thermal cycles.

Thermal Insulation

XPS cuts heat loss through the slab — warmer underfoot, lower energy bills.

Mold & Mildew Resistant

Non-porous structure denies water and nutrients — no mould, no mildew beneath the tile.

Dimensionally Stable

Holds its preformed slope through wet-dry cycles — no dips, no pooling water.

Lightweight

Fraction the weight of mortar screeds — faster install, less structural load upstairs.

Easy to Cut On-Site

Cuts cleanly with hand tools — precise fits around drains and complex geometries.

Compatible with All Drain Types

Works with linear, point, and sloped drainage — no design constraints.

Installation Steps

Eight essential steps for a successful install

Download Guide
01Subfloor preparation 02Drain position & pipework 03Installing the drain 04Fixing the tray 05Surrounding boards 06Waterproofing 07Tiling 08Finishing
Installation Tip · Drain First

Set the drain position before laying the tray — Insutile® Shower Underlay cuts cleanly around linear, point, and sloped drain bodies with standard hand tools.

Washers Included

Fixing washers are supplied with Insutile® Shower Underlay — sealing tape and more installation accessories are available to order.

View Accessories

Steps shown are a general guide — site conditions and substrates vary; always confirm the method with a qualified contractor or specifier.

How We Compare

Insutile® Shower Underlay vs alternative substrates

How Insutile® Shower Underlay compares with standard cement board, plywood with membrane, and sand-cement screed for shower floors.

PropertyInsutile® Shower UnderlayStandard Cement BoardPlywood + MembraneSand-Cement Screed
Waterproof Core✓✗✗✗
Tile-Ready Surface✓✓✗✗
Compressive StrengthHigh (≥ 300 kPa)MediumLowHigh
Mold Resistance✓Partial✗Partial
Thermal Insulation✓✗✗✗
Installation SpeedFastFastSlowSlow
WeightLightweightLightweightHeavyVery Heavy

FAQ

Frequently asked questions

Which drain types does Shower Underlay suit?

Point drains at the centre or offset, and line drains. A tray can also be made to fit a specific drain when it is named with the order.

What sizes are available?

Standard trays are square from 900 × 900 mm to 1500 × 1500 mm and rectangular up to 1000 × 1800 mm. Custom sizes, slopes and drain positions are produced to order.

Is the slope built in?

Yes. Every tray is factory-formed with the fall to the drain, so no screed has to be shaped on site.

Is a waterproofing membrane needed over the tray?

In most showers, yes. The closed-cell XPS core is waterproof, and a membrane is applied over the tray and its joints before tiling in most build-ups. Some build-ups do not need one.

Can the tray be cut on site?

Yes. It cuts cleanly with hand tools, including around drain bodies. Set the drain position before laying the tray.
