The short answer: a curbless walk-in shower is built on a pre-sloped tray set flush with the surrounding floor, with waterproof boards on the walls, sealed corners and a waterproofing membrane over the whole shower area before tiling. With Insutile®, the tray is Shower Underlay, the walls are Build Board and the corners are Angle Board. The membrane, tapes and corner seals are in the accessories range.
The steps below follow the Insutile® Shower Underlay and Build Board installation guides. They are written for contractors, and for clients who want to follow what their builder is doing. For the choice of board on each surface of a standard enclosure, see tile backer board for showers.
Why does a curbless shower ask more of the substrate?
A shower with a tray or a kerb contains water at its edge. A curbless shower does not. The tiled floor runs level from the room into the shower, and only the fall and the drain remove the water. The substrate under the tiles has three jobs:
- Hold a true fall to the drain under foot traffic.
- Stay stable where water gets past the grout.
- Give a flat base for the tiles.
An XPS board does these because its closed-cell core has a water absorption of 0.1 % or less and a compressive strength of 300 kPa or more. Its cement faces take tile adhesive directly, as cement board does. The waterproofing layer is still applied over the boards, in step 7.
Which drain layout should you choose?
The drain position is decided first, because the tray is made to suit it. Insutile® Shower Underlay has the fall formed in the factory and is made in three layouts:
- Point drain at the centre. A four-way fall. Standard trays run from 900 × 900 mm to 1500 × 1500 mm.
- Point drain offset towards an edge. A two-way fall. Standard trays are 1000 × 1000 mm, 1200 × 1200 mm, and 900 mm wide in lengths of 1200, 1500 and 1800 mm.
- Line drain along an edge. A one-way fall. Standard trays run from 1000 × 1000 mm to 1000 × 1800 mm.
A one-way fall is a single plane, so large-format tiles can be laid on it. On a four-way fall, smaller formats or mosaic sheets follow the slope better. Standard trays are 22 to 40 mm thick, depending on the plan size. Other sizes, falls and drain positions are made to order, and a tray can be made to fit a specific drain. Order the tray to suit the drain. Do not form the fall on site.
How is a curbless shower built, step by step?
1. Prepare the subfloor
The subfloor must be clean, dry, structurally sound and level: flat to 3 mm over 2 m. The tray has the fall built in, so the subfloor itself has to be level or the gradient will not drain correctly. On a timber floor, reinforce any area that flexes. On concrete, fill cracks and depressions with levelling compound.
For level access, plan the heights so that the finished tile in the shower sits flush with the floor outside it. The tray is recessed into the subfloor, or the surrounding floor is built up with board to the thinnest edge of the tray.
2. Set the drain position and the pipework
Route the waste pipe to the drain position before the tray goes down. The outlet sits flush with or slightly below the subfloor so that the tray sits flat. Test-fit the tray and the drain dry, before any adhesive is used.
3. Install the drain
Fit the drain body into the recess in the tray with a bead of sealant around the recess, and connect it to the waste pipe. The flange sits flush with or slightly below the board surface. Follow the drain manufacturer's instructions. This connection is the most critical waterproofing detail in the shower.
4. Bed the tray
Apply adhesive to the subfloor with a 10 mm notched trowel, in a full and even bed. The adhesive is chosen to suit the subfloor. Lower the tray over the drain, press it down firmly and evenly, and check with a level that the fall runs true. Leave no voids, because a void under the tray can flex underfoot and crack the tiles or the grout. Let the adhesive cure before anyone stands on the tray.

5. Board the walls and the surrounding floor
Fix Insutile® Build Board to the walls. On studs, 12.5 mm is the usual thickness; the thickness guide covers the other cases. The standard fix is screws and fixing washers at 300 mm centres across the board and 150 mm at edges and joints. The washers are supplied with every board, and the fixing method is chosen to suit the substrate.
Around the tray, the floor boards are butted tight to the tray edges and set level with its thinnest edge. That gives the level-access transition. Bed reinforcing tape in adhesive over every board joint. Curved walls are formed with Insutile® Flex Board, which bends to a minimum radius of 200 mm. The full method for the wall boards is in how to install Insutile® Build Board.
6. Form the corners and box in the pipes
Insutile® Angle Board is a factory V-scored board that folds to 90°. It forms internal corners, external corners and pipe boxing in one piece, with the outer face continuous through the fold, so there are fewer site-cut joints to seal. The method for boxing is in how to box in pipes for tiling.
7. Waterproof the shower area
In showers, a waterproofing membrane is applied over the boards and joints in most cases. A curbless shower has no tray edge to contain the water, so the Shower Underlay installation guide applies the membrane over the entire shower area: the tray, the surrounding floor boards and the walls to a height of at least 1800 mm. It goes on in two even coats, and the first coat is dry before the second.
Waterproof corner seals go in every internal corner, and waterproof sealing tape covers the junctions. The coverage has to be complete over joints, corners, penetrations and the drain. The membrane, the tape and the corner seals are in the Insutile® accessories range, or can be sourced by the contractor.
8. Tile
Apply a C2TE S1 (deformable) tile adhesive directly to the waterproofed surface and tile following the fall. No primer is needed. Back-butter large tiles for full coverage and cut cleanly around the drain. Set the layout out from the drain, so that grout lines run parallel to a line drain or sit symmetrically either side of it.
9. Grout, seal and test

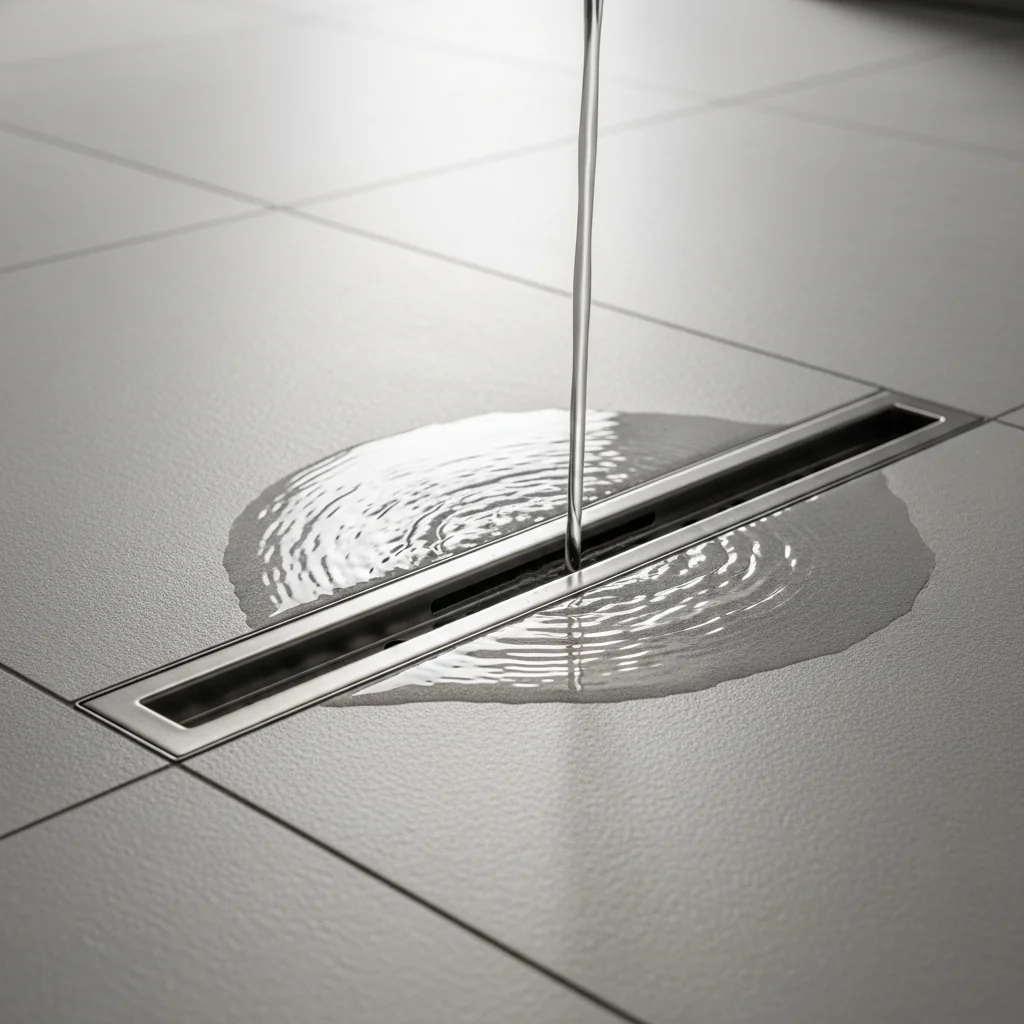

Grout with a waterproof grout. Apply sanitary silicone at every change of plane, around the drain and at penetrations. Fit the drain grate and let everything cure fully, for 24 to 48 hours. Then test the flow by pouring water across the tray. Any moisture at the edges at this stage shows a joint to re-seal before the screen is fitted.

Which Insutile® products are used in a curbless shower?
| Part of the shower | Product | Specification |
|---|---|---|
| Shower floor | Shower Underlay | Factory-formed fall · centre, offset or line drain · 22 to 40 mm · square 900 × 900 to 1500 × 1500 mm, rectangular up to 1000 × 1800 mm, other sizes to order |
| Walls and surrounding floor | Build Board | 12.5 mm on studs · floor thickness chosen for a flush junction with the tray |
| Curved walls | Flex Board | 20 mm · minimum radius 200 mm |
| Corners and pipe boxing | Angle Board | 20 mm · folds to 90° |
| Fixing | Fixing washers and screws | Washers supplied with every board · 300 mm centres, 150 mm at edges and joints |
| Joints and waterproofing | Accessories | Joint reinforcing tape, waterproof sealing tape, corner seals, waterproofing membrane |
The boards are CE marked and backed by a ten-year warranty. The accessories can be ordered from Insutile® or sourced by the contractor. The same products, room by room, are set out on the bathroom and wet-room solutions page, and for wellness areas on the spa solutions page.
Frequently Asked Questions
What fall does a curbless shower floor need?
The fall is set by the design and by the local building code, so no single figure applies everywhere. Insutile® Shower Underlay is supplied with the fall formed in the factory, and other falls are made to order.
Do I need a waterproofing membrane in a curbless shower?
In most cases, yes. A curbless shower has no tray edge to contain the water, so the membrane is applied in two coats over the tray, the surrounding floor boards and the walls to at least 1800 mm, with corner seals in the internal corners.
Can a curbless shower have a point drain?
Yes. Insutile® Shower Underlay is made for centre and offset point drains as well as line drains. A point drain has a four-way or two-way fall, which suits smaller tiles or mosaics. A line drain along an edge has a one-way fall, which suits large-format tiles.
How thick is the shower tray?
Standard Insutile® Shower Underlay trays are 22 to 40 mm thick, depending on the plan size. Square trays run from 900 × 900 mm to 1500 × 1500 mm and rectangular trays up to 1000 × 1800 mm. Other sizes are made to order.
Can a curbless shower be built on a timber floor?
Yes, if the floor is rigid and level: flat to 3 mm over 2 m, with no flex. Reinforce the floor where necessary before the tray is bedded.
