How thick should a tile backer board be?

Insutile® News

The thickness depends on what the board has to do: line a surface, form a box or a panel, insulate, or stand as a counter or a partition. This article follows the Insutile® board thickness guide.

A tape measure, a pencil and a folding rule laid on a pale timber surface inside a marked-out rectangle
Home/News/How thick should a tile backer board be?

The short answer: use 6 to 12.5 mm to line walls and floors, 20 to 30 mm for boxing, bath panels and thermal insulation, and 40 to 80 mm for counters, furniture and partition walls. These are the three bands in the Insutile® board thickness guide. Insutile® Build Board is made in ten thicknesses from 4 to 80 mm, customisable if needed, so the choice comes down to what the board has to do.

The one-page guide is available as the board thickness guide (PDF). This article goes through it band by band.

What decides the thickness?

  • What is behind the board. A flat, solid wall or floor supports the board over its whole area, so a thin board is enough. A stud frame supports it only at the studs, so the board has to be stiffer.
  • What the board has to do. Lining a surface for tiles is one job. Standing as a counter, a bath panel or a partition is another.
  • Whether insulation is wanted. Thermal resistance rises in step with thickness.

Which thickness suits which application?

The table follows the Insutile® board thickness guide.

ApplicationRecommended thicknessBand
Floor levelling and covering6 to 80 mmLinings and surfaces
Wall cladding6 to 80 mmLinings and surfaces
Window forming12.5 mmLinings and surfaces
Toilet boxing20 to 30 mmBoxing and panels
Bathtub panels20 to 30 mmBoxing and panels
Thermal insulation20 to 80 mmBoxing and panels, and above
Counters40 to 80 mmCounters and partitions
Furniture construction40 to 80 mmCounters and partitions
Partition walls50 to 80 mmCounters and partitions

For an application or a thickness outside this table, confirm it with the technical team before specifying.

What are the thin boards, 4 to 12.5 mm, used for?

Boards of 6, 10 and 12.5 mm are linings. They clad a wall, or level and cover a floor, and the structure behind them carries the load. Over an existing solid or tiled wall, 6 or 10 mm keeps the build-up small, which matters at door frames, trims and thresholds. On a stud wall, 12.5 mm is the usual choice, because the board spans between the studs. Window reveals are formed in 12.5 mm.

The 4 mm board is the thinnest in the range. It is used as an overlay where the build-up has to be kept to a minimum; confirm it with the technical team for the surface in question. Recessed niches are supplied pre-formed in the Insutile® Trays and Niches range.

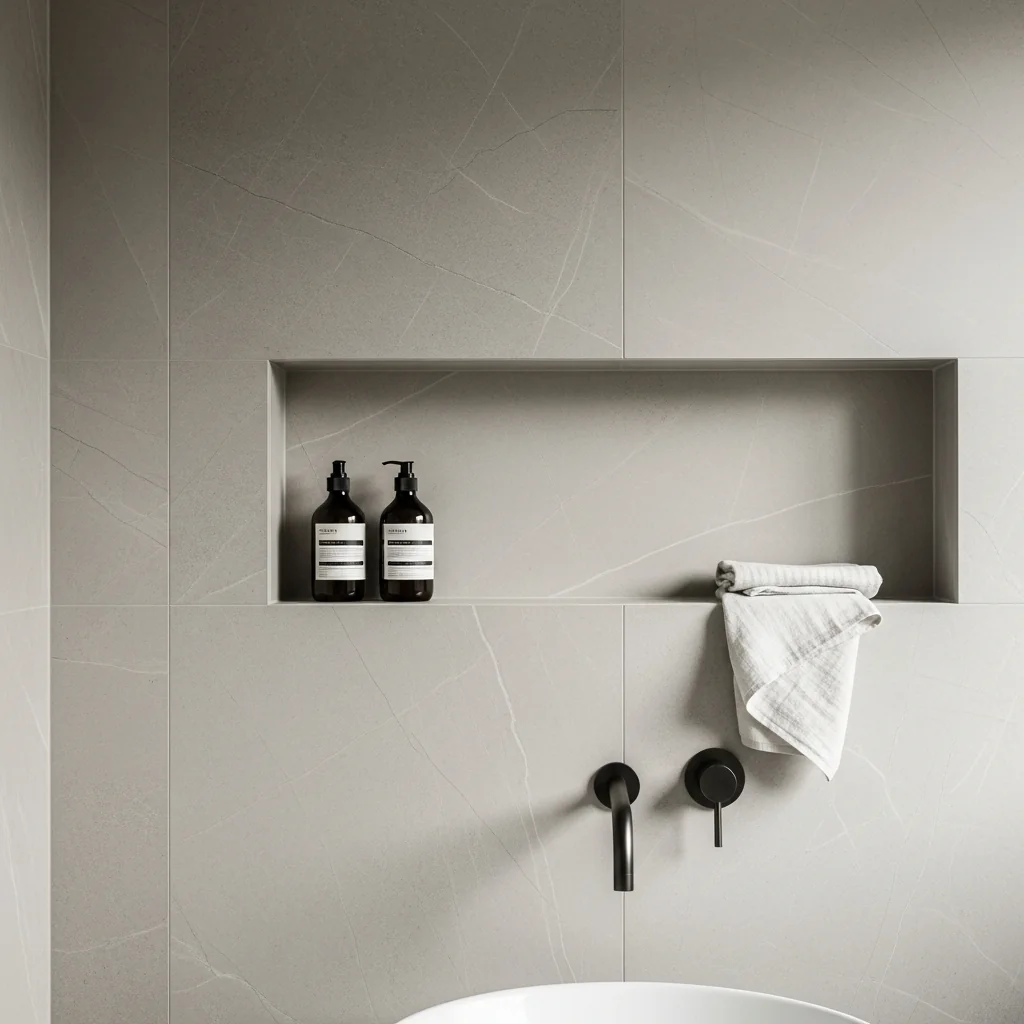

A bathroom wall tiled in large-format pale grey porcelain, with a recessed niche holding two soap bottles and a folded towel above a wall-mounted black tap
A thin board lines an existing wall without adding much to its thickness.

When do you need 20 or 30 mm?

At 20 and 30 mm the board is stiff enough to form a box or a panel. The guide gives both thicknesses for toilet boxing and bath panels. Corners and pipe boxing can also be formed with Insutile® Angle Board, a 20 mm board that folds to 90°.

These thicknesses are also where the board starts to work as insulation. Under underfloor heating the board limits downward heat loss, so more of the output goes into the room. That case is covered in do you need insulation boards under underfloor heating?

What are 40 to 80 mm boards for?

Boards of 40, 50, 60 and 80 mm are used where the board forms the element itself: counters, built-in furniture and, from 50 mm, partition walls. A board partition is compared with a brick wall in brick partition wall vs board wall.

Two shower elements are not built from flat board. Seats and benches are available pre-formed in the Insutile® Trays and Niches range. A level-access shower floor is formed with Insutile® Shower Underlay, which has the fall built in; see how to build a curbless walk-in shower.

How much insulation does each thickness add?

The thermal resistance of a board is its thickness divided by its thermal conductivity, λ ≤ 0.034 W/mK (ASTM C518).

ThicknessThermal resistance
20 mmabout 0.59 m²K/W
30 mmabout 0.88 m²K/W
40 mmabout 1.18 m²K/W
50 mmabout 1.47 m²K/W
60 mmabout 1.76 m²K/W
80 mmabout 2.35 m²K/W

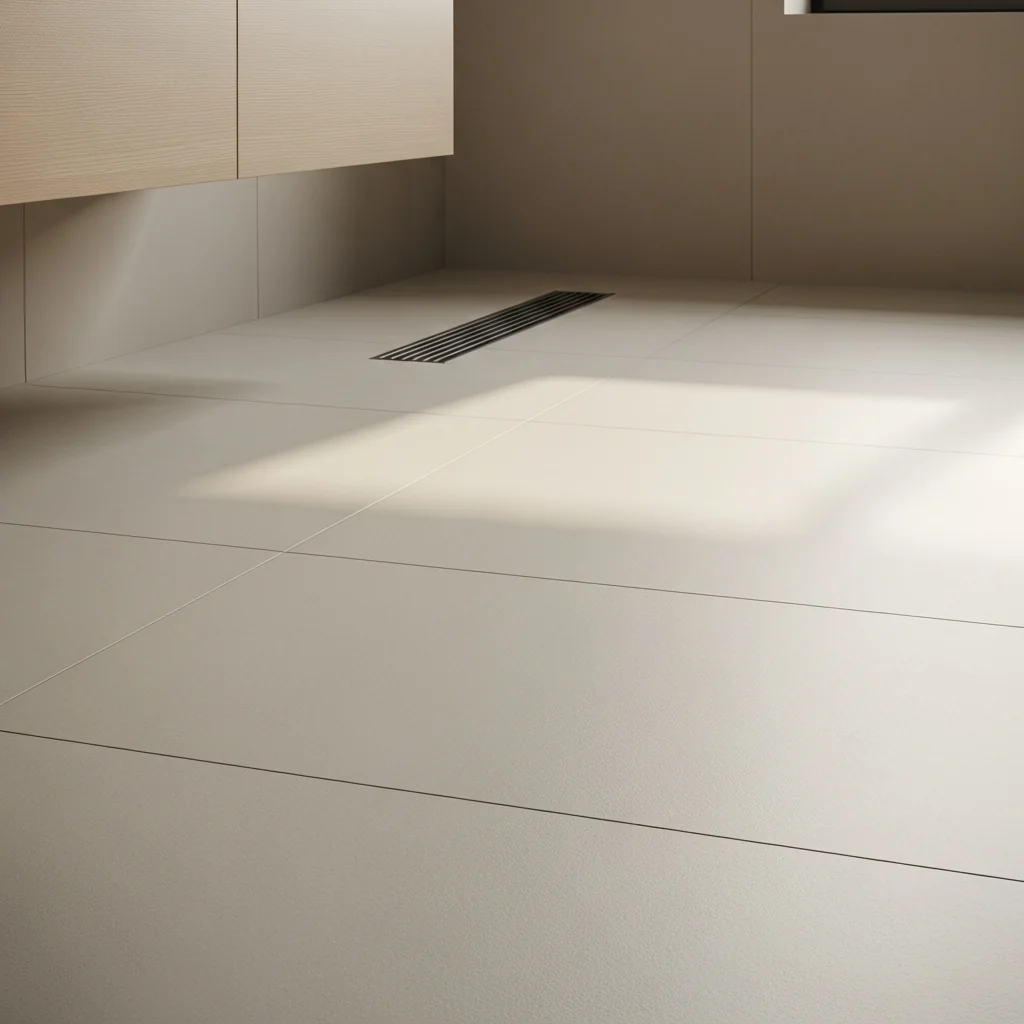

A bathroom floor in large-format pale grey porcelain tiles with a linear drain set flush near the wall
On a floor, a thicker board adds insulation under the tiles.

Can thicknesses be mixed in one room?

Yes. A bathroom often uses a thin board over the existing walls, a thicker board on an external wall or under a heated floor, and 20 or 30 mm panels for the bath and the boxing. All thicknesses have the same cement faces, so they are jointed and tiled in the same way. The steps are in how to install Insutile® Build Board, and the products for each room are on the bathroom and wet-room solutions page.

Frequently Asked Questions

What thickness of tile backer board is used on walls?

Over a solid or tiled wall, 6 or 10 mm. On a stud wall, 12.5 mm is the usual choice. Boards from 20 mm are used where the wall also needs insulation.

What thickness is used on floors?

The Insutile® board thickness guide lists every thickness from 6 mm for floor levelling and covering. The choice depends on the subfloor and on whether insulation is wanted, for example under underfloor heating. Confirm the build-up for a timber floor with the technical team.

Which thicknesses does Insutile® Build Board come in?

Ten: 4, 6, 10, 12.5, 20, 30, 40, 50, 60 and 80 mm, customisable if needed. Boards from 10 mm are made in Insutile® Small (600 × 1200 mm) and Insutile® Large (600 × 2400 mm). The 4 and 6 mm boards are made in Insutile® Small.

How much insulation does a thicker board add?

Thermal resistance is the thickness divided by the thermal conductivity of 0.034 W/mK. A 20 mm board gives about 0.59 m²K/W, 30 mm about 0.88 m²K/W and 50 mm about 1.47 m²K/W.

Can I order a thickness that is not in the list?

Yes. Thicknesses and sizes outside the standard range are customisable if needed. Confirm the application with the technical team before specifying.
