XPS tile backer boards for bathroom renovations: boarding over old tiles

Insutile® News

Where the existing tiles or plaster are sound and level, the new boards can be fixed over them and the wall does not have to be stripped. This article covers the conditions, the fixing and the added thickness.

A bathroom under renovation with a freestanding bath below a window, white square tiles on one wall, plain plastered walls, and trowels, spirit levels and a tape measure laid out on a dust sheet
Home/News/XPS tile backer boards for bathroom renovations: boarding over old tiles

The short answer: in a bathroom renovation, an XPS tile backer board can be fixed over the existing tiles or plaster instead of stripping the wall, provided the old surface is sound and level. The installation guide for Insutile® Build Board lists old tiles, plaster and uneven substrates as backgrounds the board can go over, once they are prepared. Where the old surface stays, the strip-out is avoided on that wall, together with its dust and waste.

This article covers when boarding over works, when the old surface has to come off, how the boards are fixed and how much thickness they add. The labour on the boarding stage itself is covered in how Insutile® boards reduce installation time and labour.

When can you board over existing tiles or plaster?

The condition is the one the installation guide sets for any substrate: clean, dry, stable and level. On an existing tiled or plastered surface, that means the following.

  • The tiles or plaster are firmly bonded. Loose or hollow areas are removed and filled before boarding.
  • The wall is dry. Any damp is traced and repaired first. A board fixed over a damp wall hides the defect and does not repair it.
  • The surface is level. Walls are plumb and secure. Floors are flat to 3 mm over a 2 m span. Depressions are filled with levelling compound.
  • The surface is clean. Soap residue, grease and dust are removed.

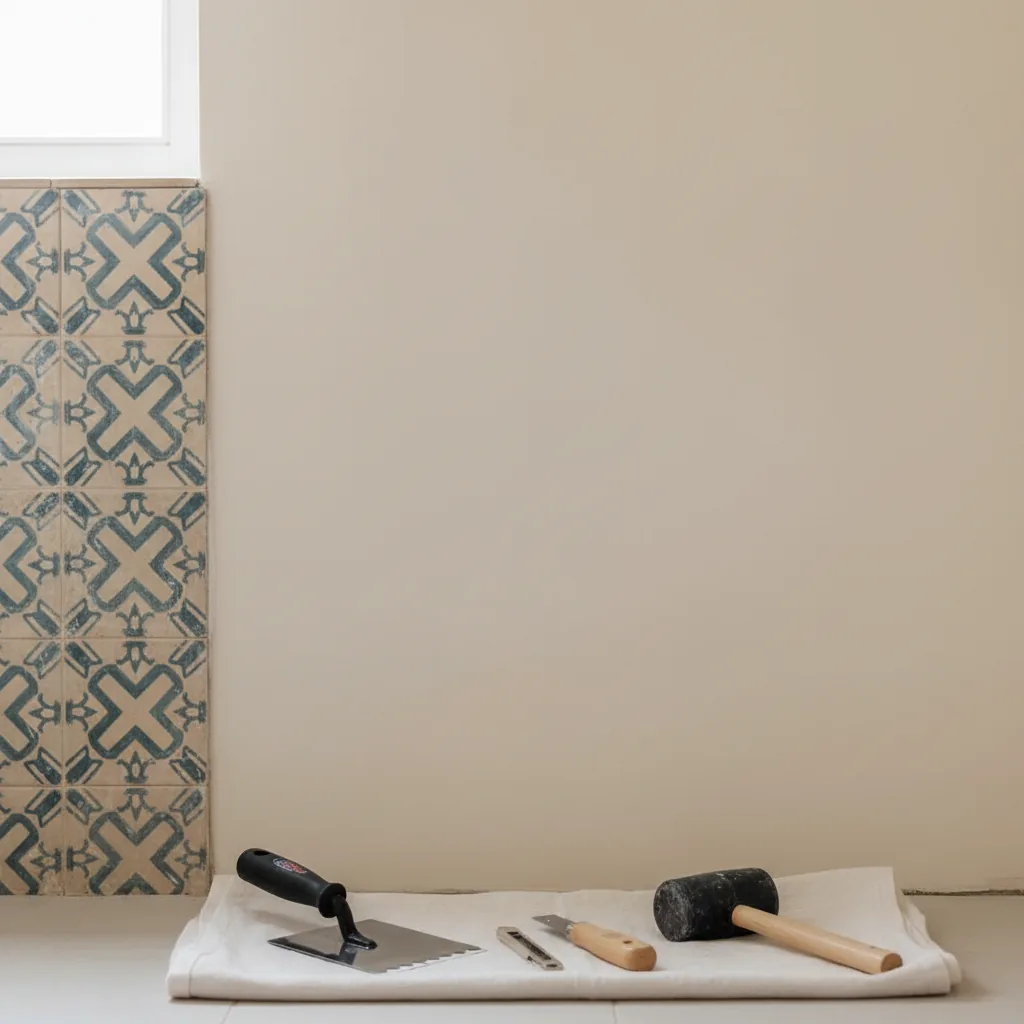

A column of old patterned tiles left on a wall below a window, beside a plain plastered wall, with a notched trowel, a knife and a rubber mallet on a cloth on the floor
Old tiles that are firmly bonded can stay on the wall and be boarded over.

When does the old surface have to come off?

Boarding over is not a way to cover a defect. The old surface is taken back to a sound substrate in these cases:

  • The tiles are loose or hollow over a large part of the wall.
  • The wall behind is damp, or timber behind it has decayed.
  • The background is plasterboard in a shower area and it has taken in water. That case is covered in can you tile over plasterboard in a shower?
  • The room cannot take the added thickness at a door, a window or a fitting.

Where a wall is stripped, the same board is fixed to the studs or the masonry. The steps are in how to install Insutile® Build Board.

How is the board fixed over an old surface?

The adhesive and the fixing method are chosen to suit the substrate or structure. The standard method in the Insutile® installation guide is screws and fixing washers at 300 mm centres across the board and 150 mm at edges and joints. The washers are supplied with every board.

On a tiled or plastered masonry wall, the board is bonded with adhesive and secured with the washers. The fixings pass through the old surface and anchor in the wall or the studs behind it. The joints between the boards are then reinforced with tape.

Boards with the Regular Coat finish are scored with a utility knife and snapped, so straight cuts do not need a saw in an occupied home. Boards with the Dual Coat · Patterned finish may need power tools. The new tiles are laid in a C2 class tile adhesive, applied directly to the board face without priming.

How much thickness does the new lining add?

The new tiled face moves forward by the thickness of the board, the adhesive and the new tile. Insutile® Build Board is made in ten thicknesses from 4 to 80 mm, customisable if needed. The thinner boards are used where the added thickness has to be kept small. The thickness guide covers the choice.

Before boarding, check the points where the added thickness shows: door linings and architraves, window reveals, pipe outlets, sockets and the positions of the sanitaryware.

What does boarding over save?

On every surface that is boarded over, the demolition stage is not needed. The old tiles are not chiselled off, the debris is not carried through the home, and the wall behind is not damaged by the removal. The saving depends on how much of the room can be kept, so no single figure applies.

The boarding stage is also lighter work than with cement board. Cement board weighs about 22 kg per 600 × 1200 mm sheet at 12.5 mm. An Insutile® Build Board of the same size weighs about 3 kg, which is 7× lighter, so one person can carry and position it. Labour on the boarding stage can fall by up to 50 %, depending on the room, the access and the substrate. The two materials are compared in XPS vs cement tile backer boards.

Is a waterproofing membrane still needed in the shower?

The XPS core of the board has a water absorption of 0.1 % or less (EN 12087). It does not swell or rot if water gets past the tiles and the grout. In showers, a waterproofing membrane is applied over the boards and joints in most cases, with corner seals in the internal corners. The membrane, the tapes and the corner seals are in the Insutile® accessories range.

The board for each surface of a shower enclosure is set out in tile backer board for showers.

Does the new lining add insulation?

Yes. The XPS core has a thermal conductivity of 0.034 W/mK or less (ASTM C518), which contributes to an A+ energy performance rating. A 12.5 mm board adds a thermal resistance of about 0.37 m²K/W behind the tiles, and a 20 mm board about 0.59 m²K/W. The board is fixed for the tiling in any case, so the insulation does not need a separate stage.

Under underfloor heating, the board limits downward heat loss, so more of the output goes into the room. This is covered in insulation boards under underfloor heating. For cooled rooms, see how XPS tile backer boards reduce cooling load in hot climates.

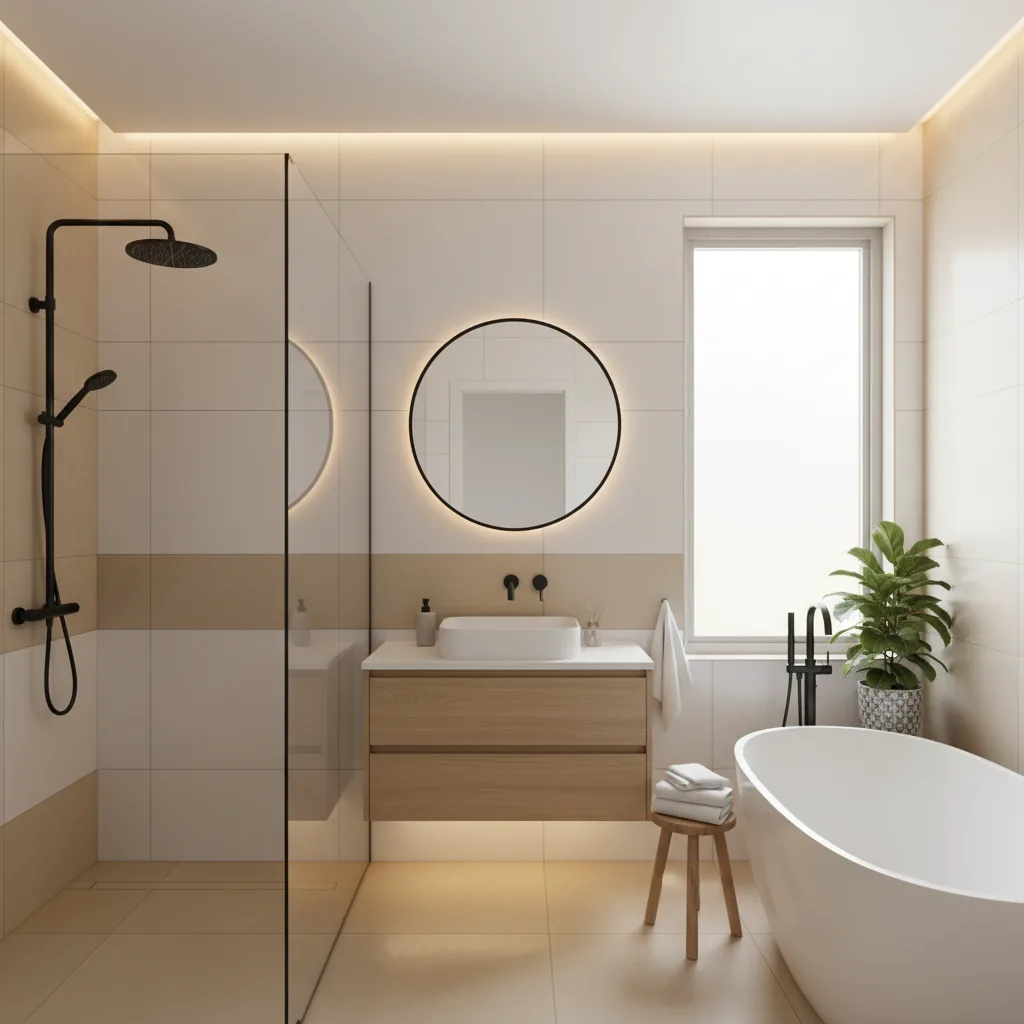

A finished bathroom with large cream wall and floor tiles, a walk-in shower behind a glass screen, a round backlit mirror over a wall-hung timber vanity and a freestanding bath by the window
The new tiles are laid on the board face in tile adhesive, as on any tiled wall.

Which Insutile® products are used in a renovation?

The boards are CE marked and backed by a ten-year warranty. The products for each room are on the bathroom and wet-room solutions, kitchen solutions and laundry solutions pages.

Frequently Asked Questions

Can tile backer board be fixed over existing tiles?

Yes, where the tiles are sound. The Insutile® Build Board installation guide lists old tiles, plaster and uneven substrates as backgrounds the board can be installed over. The surface has to be clean, dry, stable and level first, so loose areas are removed and depressions are filled.

When do the old tiles have to be removed?

The old surface is stripped where the tiles are loose over a large part of the wall, where the wall behind is damp, or where the room cannot take the added thickness. Boarding over does not repair a defect in the wall behind.

How are the boards fixed over an old surface?

The adhesive and the fixing method are chosen to suit the substrate or structure. The standard method in the installation guide is screws and fixing washers at 300 mm centres across the board and 150 mm at edges and joints. The washers are supplied with every board.

Is a waterproofing membrane still needed in the shower?

In showers, a waterproofing membrane is applied over the boards and joints in most cases. The XPS core of the board has a water absorption of 0.1 % or less (EN 12087).

How much does Insutile® Build Board weigh compared with cement board?

A 600 × 1200 mm Insutile® Build Board at 12.5 mm weighs about 3 kg. Cement board of the same size weighs about 22 kg, so the Insutile® board is 7× lighter.
