The short answer: Insutile® Build Board is 7× lighter than cement board, is cut with a utility knife and does not produce saw dust, so the boarding stage of a bathroom needs fewer people and fewer hours. Labour on that stage can fall by up to 50 %, depending on the room, the access and the substrate.
The rest of this article goes through where the time goes on a cement board installation and what changes with an XPS board. The wider comparison of the two materials is in XPS vs cement tile backer boards.
Where does the labour go on a cement board installation?
A cement board at 12.5 mm weighs about 22 kg per 600 × 1200 mm sheet. Carrying sheets of that weight to an upstairs bathroom and holding them against a wall for fixing is usually work for two people.
Straight cuts can be scored. Openings and shaped cuts need a saw or a grinder with a diamond blade, which produces silica dust. That dust has to be controlled with extraction and protective equipment and cleaned up afterwards, which is difficult in a home that is still occupied.
How does score-and-snap cutting save time?
Insutile® Build Board with the Regular Coat finish is cut with a utility knife and a straight edge. Score through the cement face, snap the board along the line and trim the back face. There is no saw to set up, no extension lead and no dust extraction.
Shaped cuts around waste pipes and mixer outlets are made with a fine-tooth saw. Boards with the Dual Coat · Patterned finish may need power tools.
Why does the weight of the board matter?
An Insutile® Build Board of 600 × 1200 mm at 12.5 mm weighs about 3 kg. Cement board of the same size weighs about 22 kg, so the Insutile® board is 7× lighter.

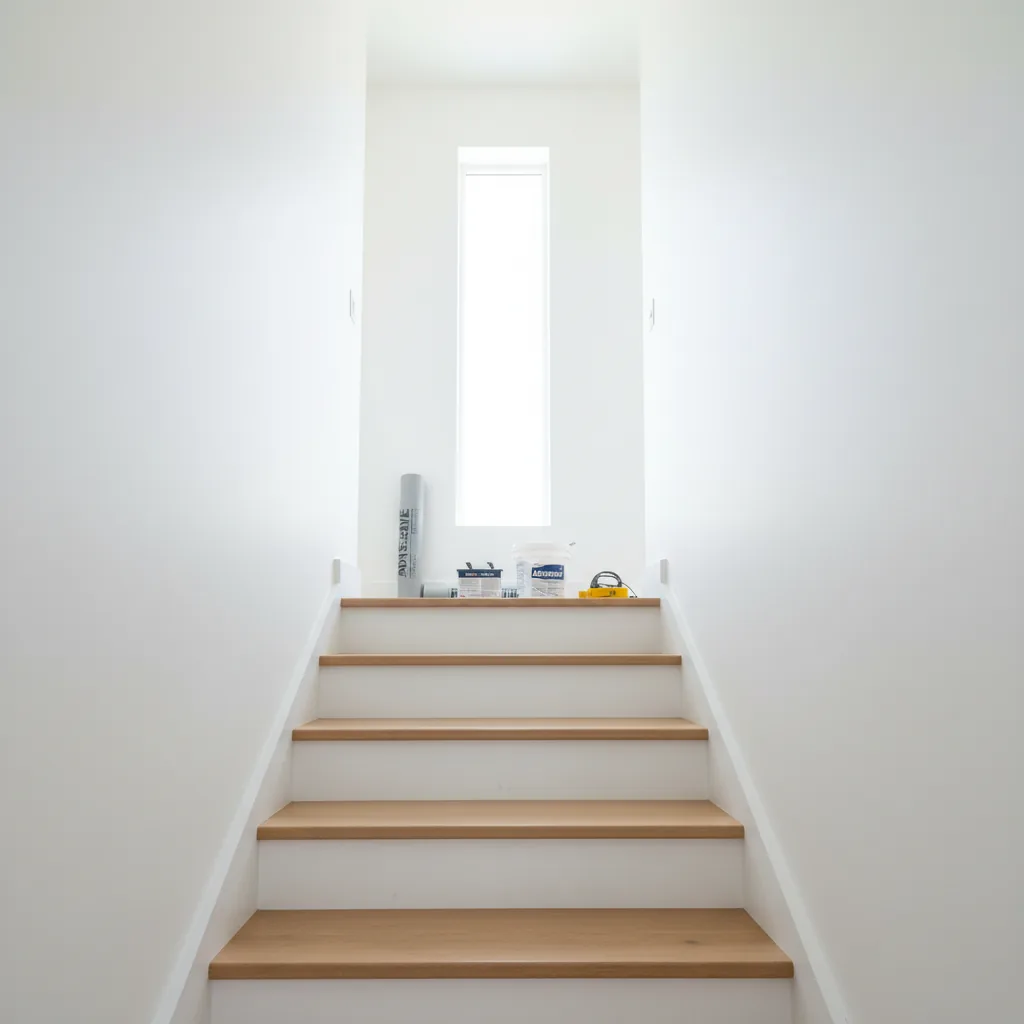

One person can carry a board up a staircase, position it and hold it with one hand while fixing with the other. On a small job, one installer can do the boarding. On a larger job, a two-person crew is not held up by lifting.

What difference does dust make in an occupied home?
Many bathroom renovations are done while the home is lived in. Sawing cement board indoors needs dust sheeting, extraction and cleaning time. Scoring and snapping an XPS board does not produce that dust, so the protection and the clean-up are limited to what normal tiling work needs.
How are the boards fixed?
The adhesive and the fixing method are chosen to suit the substrate or structure the boards are applied to. The standard method in the Insutile® installation guide is screws and fixing washers at 300 mm centres across the board and 150 mm at edges and joints.
The washers are supplied with every board and seat flush with the board face. Tile adhesive is applied directly to the cement face, without priming. The steps are in how to install Insutile® Build Board.
What does the comparison look like on a typical bathroom?
The table compares the boarding stage task by task. It is an illustration, not a quotation: the result depends on the room, the access and the substrate.
| Task | Cement board | Insutile® Build Board |
|---|---|---|
| Carrying sheets to the room | About 22 kg per 600 × 1200 mm sheet at 12.5 mm. Usually two people. | About 3 kg per sheet. One person. |
| Straight cuts | Score and snap, or saw. | Score and snap with a utility knife (Regular Coat). |
| Shaped cuts and openings | Saw or grinder with a diamond blade. | Fine-tooth saw. |
| Dust control | Extraction, sheeting and protective equipment for silica dust. | Not needed for scored cuts. |
| Holding and fixing on a wall | Usually two people. | One person. |
| Before tiling | As the board manufacturer specifies. | Tile adhesive directly on the board face. No primer. |
Taken together, labour on the boarding stage can fall by up to 50 %. Where the existing tiles are sound, boarding over them can also remove the strip-out. That saving belongs to the renovation method and is covered in XPS tile backer boards for bathroom renovations.

What stays in the wall after the installation?
The board that shortens the installation also remains as the substrate. The XPS core has a water absorption of 0.1 % or less and a thermal conductivity of 0.034 W/mK or less. It does not swell or rot if moisture reaches it, and it adds insulation behind the tiles. In showers, a waterproofing membrane is applied over the boards and joints in most cases.
What does a contractor need to change?
The tools are the ones already used for tiling. Setting out, cutting, fixing and joint treatment follow the same order as for other backer boards. The installation guides for each product are on the tools page.
The range covers the common situations on a job: Insutile® Build Board for walls and floors, Insutile® Flex Board for curves, Insutile® Angle Board for corners and pipe boxing, Insutile® Shower Underlay for shower floors, Insutile® Easy Board as a pre-tiled insulation board, Insutile® Trays and Niches for recesses and seats, and the accessories for fixing, jointing and waterproofing. The products for each room are on the bathroom and wet-room solutions page.
Frequently Asked Questions
How much lighter is Insutile® Build Board than cement board?
It is 7× lighter. A 600 × 1200 mm Insutile® Build Board at 12.5 mm weighs about 3 kg, against about 22 kg for cement board of the same size.
Can one person install the boards?
One person can carry, position and fix a standard board. Larger jobs still benefit from a crew, but the crew is not held up by lifting.
Do the boards need power tools to cut?
Boards with the Regular Coat finish are scored with a utility knife and snapped. Shaped cuts are made with a fine-tooth saw. Boards with the Dual Coat · Patterned finish may need power tools.
How much labour can be saved?
Labour on the boarding stage can fall by up to 50 %, depending on the room, the access and the substrate. The saving comes from single-person handling, knife cutting and less dust control.
